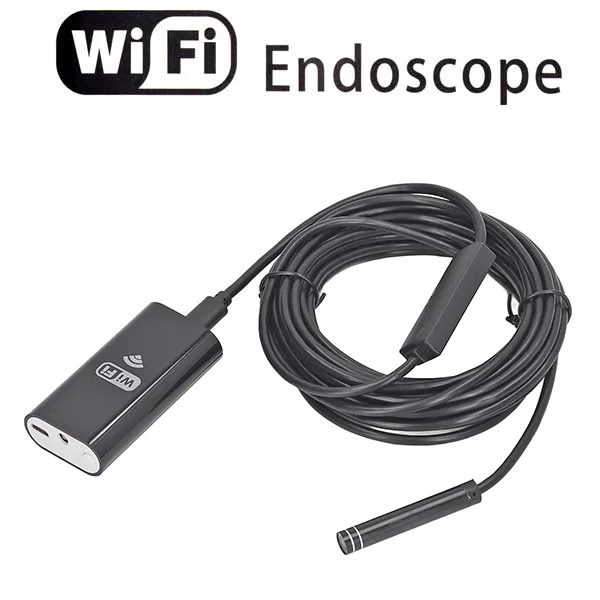

Wi-Fi Endoscope Camera for Smartphones and PC

2 Megapixel colour Wi-Fi endoscope camera

SKU 2846-WIFIENDSCOPEEAN 8219671090124Features: Built-in battery, Special purposeColour: BlackFormat: Other formatsMaterial: Plastic / metalResolution: 2 MpxConnection type: Wi-Fi,

Description

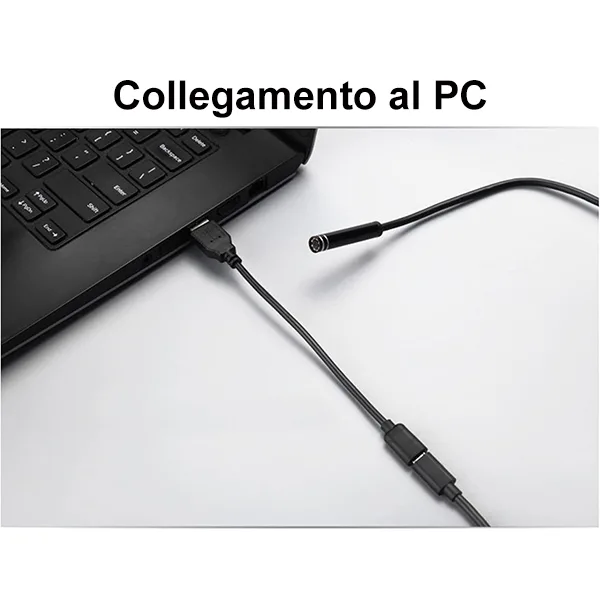

This Wi-Fi Endoscope Camera is specifically designed for inspections in tight and hard-to-reach spaces. It connects via Wi-Fi to Android and iOS smartphones (with the corresponding app installed), or via the USB port of a PC running Windows (Vista / XP / 7 / 8 / 10 / 11) and MAC.

It allows real-time viewing of what the camera captures, taking photos and videos, and recording everything on a smartphone, tablet, or PC.

N.B. The app “INSKAM” for Android or iOS can be downloaded for free from the respective Store.

Technical specifications

  • Illumination: 8 white LEDs with adjustable intensity, for optimal viewing even in conduits, pipes, and underwater
  • Power supply: via the dedicated adapter with Wi-Fi transmitter and integrated rechargeable 500 mAh battery (about 90 minutes of autonomy), or via micro USB port when connected to a PC
  • Supported operating systems: Android, iOS, Windows Vista / XP / 7 / 8 / 10 / 11, and MAC
  • Weight:
    – package: 190 g

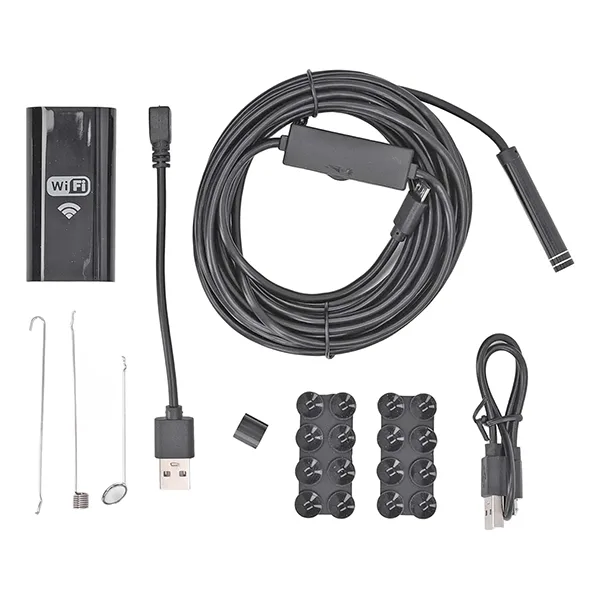

Package includes

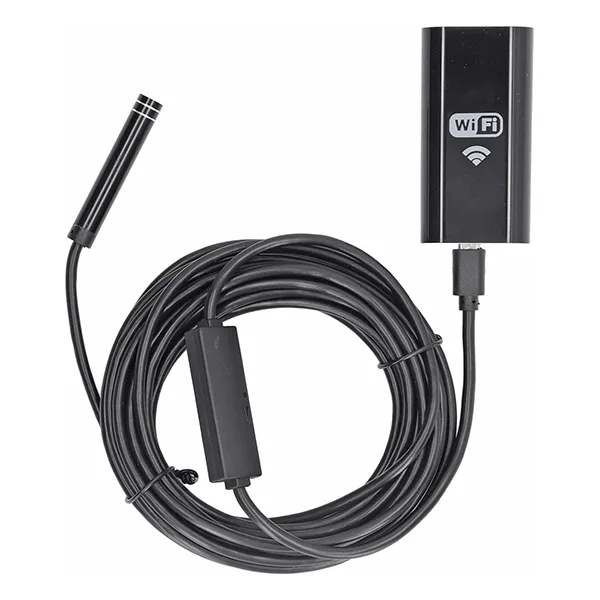

  • 2-Megapixel Wi-Fi endoscope camera
  • Magnet for picking up small metal parts
  • Hook for retrieving wires or other small objects
  • Mirror for looking around corners

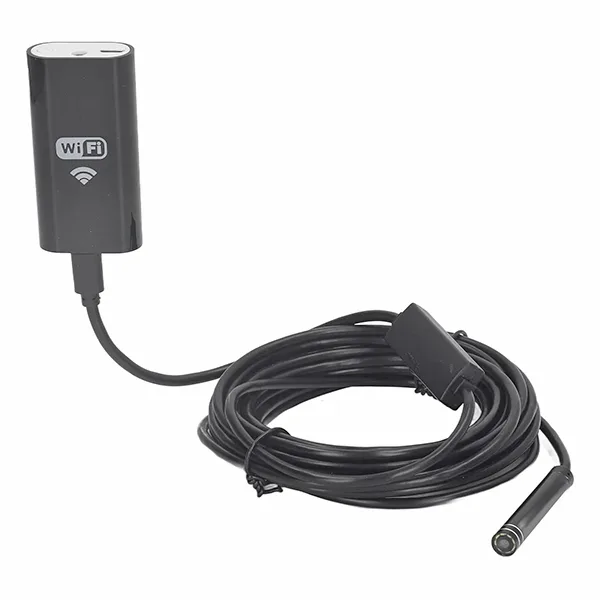

  • Wi-Fi transmitter
  • Suction cups to attach the Wi-Fi transmitter to a smartphone or other surface
  • User manual in Italian

Wi-Fi endoscope camera

Technical details

Resolution 2 Megapixels (1920x1080 pixels)
Sensor CMOS
Field of view 70°
Focal distance 4-6 cm to infinity

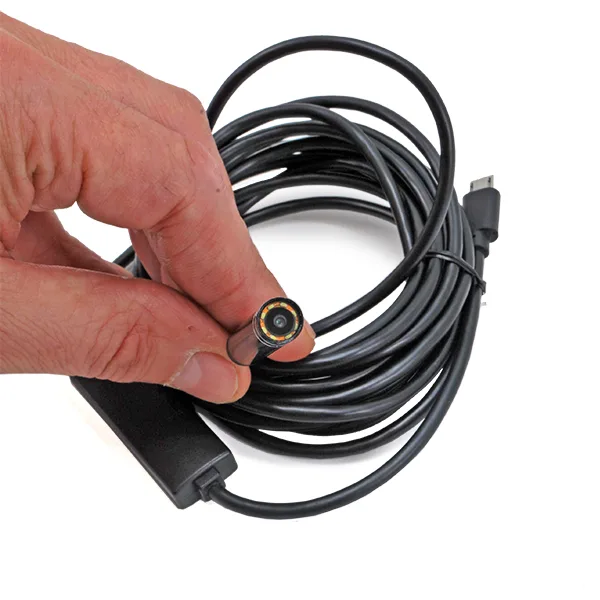

Camera diameter 8 mm
Wi-Fi frequency 2.425 GHz to 2.493 GHz
Wi-Fi transmission range 5-30 m
Flashlight function LED on the Wi-Fi transmitter
Photo format JPEG
Video format AVI
Operating temperature -20°C to +85°C
Protection rating IP67 (camera and flexible tube)
Total length approx. 3.5 m
camera 65 g
