Solid State Relay – in 3-32 Vdc – out 5-60 Vdc 40A

Single-contact solid state relay, optically isolated, with snubber protection, TTL and CMOS compatible

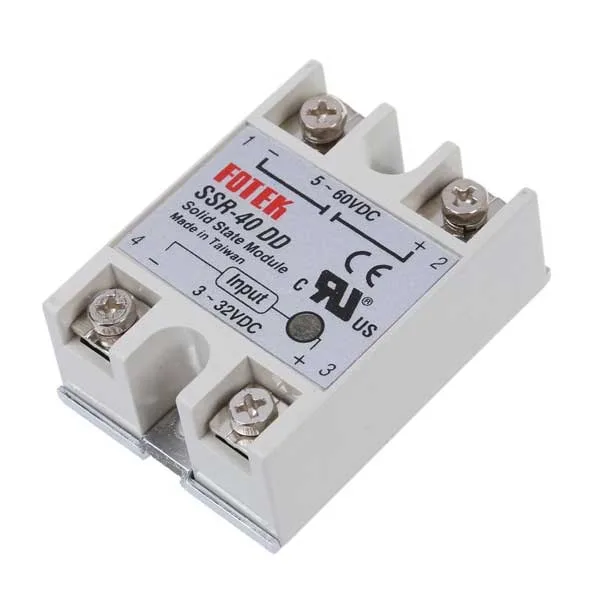

Solid State Relay - in 3-32 Vdc - out 5-60 Vdc 40A - Image 1

SKU 2846-SSR40DDEAN 8219671090049Item type: Assembled

Description

Single-contact solid-state relay, optically isolated, with snubber protection, TTL and CMOS compatible. Coil voltage: 3 to 32 VDC, contact rating: 5 to 60 VDC / 40 A. Solid-state relays, compared to mechanical relays, have several advantages: they can be activated by a much lower voltage and at a much lower current than most mechanical relays. Furthermore, since there are no moving contacts, they can be activated much faster and for much longer periods. Dimensions (mm): 63x45x26.

Technical details

Input voltage 3 to 32 VDC
Control current 6 to 50 mA
Output contact rating 5 to 60 VDC / 40 A
Insulation resistance 500 MΩ / 500 VDC
Operating temperature -30°C to +75°C
