SONY colour camera module, 700 TV lines

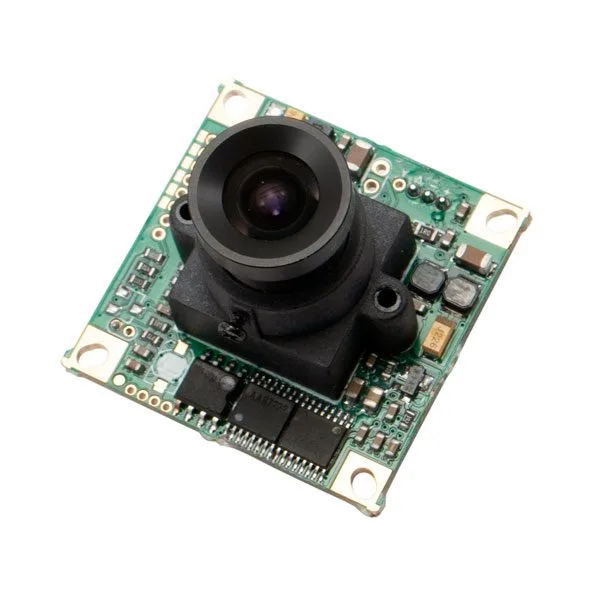

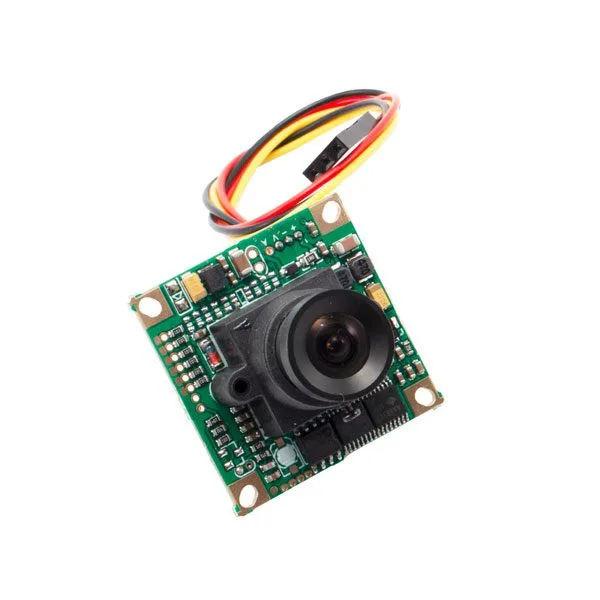

Colour camera module with a 1/3" CCD sensor and SONY DSP.
SKU 2846-FPVCAMERANEAN 8219671095129Features: CVBS signalFormat: Exposed electronicsResolution: 700 TV linesConnection type: Coaxial cableCameras
Description
| Colour camera module with a 1/3″ CCD sensor and SONY DSP, ideal for images of the highest quality. The f3.6 mm lens gives a wide field of view, perfect for all kinds of application. The camera boasts a very high resolution of 700 TV lines, for extremely detailed images. With a sensitivity of 0.1 Lux, it works well even in poor light.

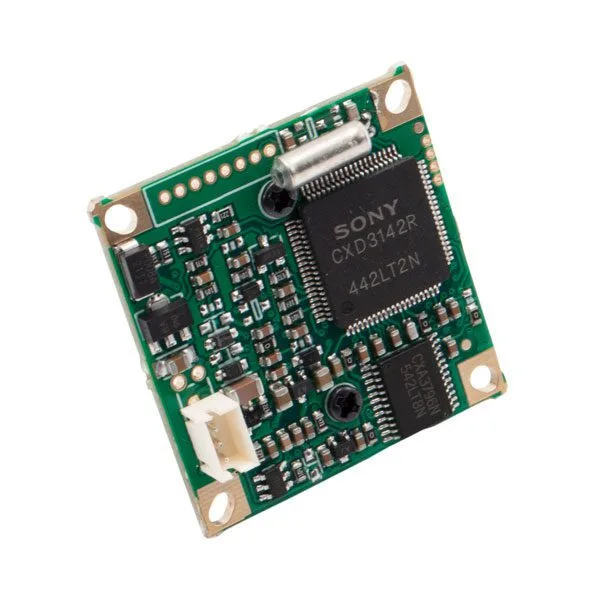

The built-in SONY DSP improves image quality further, giving a high signal-to-noise ratio thanks to special noise reduction filters, while keeping outstanding colour fidelity. |
Technical details
| Sensor | 1/3" colour CCD with SONY DSP |
|---|---|
| Video output | 1 Vpp 75 ohm composite video |
| Lens | 3.6 mm |
| Field of view | about 78° |
| Video system | PAL |
| Resolution | 700 TV lines |
| White balance | automatic |
| Electronic shutter | 1/50 - 1/100000 s |
| Sync | internal |
| Power supply | 12 Vdc |
| Current draw | 70 mA |
| Operating temperature | -20°C to +60°C |
| Dimensions (mm) | 31.6x31.6x30 |
| Weight | 13 grams |
