Stepper Motor 12 Vdc – 64 steps

Ideal for any application that calls for precise angular positioning and rotation speed, such as robotics and servo mechanisms.

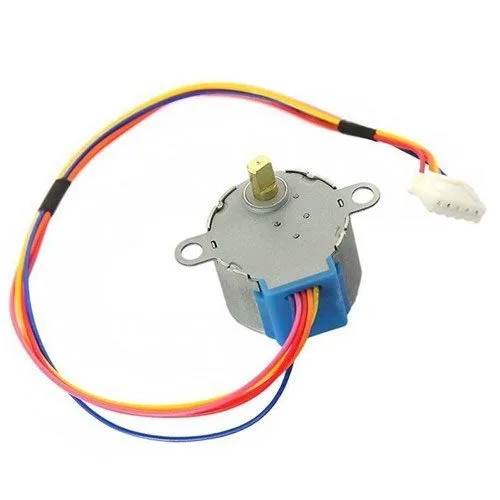

Stepper Motor 12 Vdc - 64 steps - Image 1

SKU 2850-STEPMOTOR12VEAN 8219671115865Item type: Assembled,

Description

Ideal for all applications requiring precision in angular displacement and rotation speed, such as in robotics and servomechanisms.

Dimensions (mm) and connections

Technical details

Supply voltage 12 Vdc
Impedance 380 ohm
Shaft diameter 5 mm
Number of wires 5, about 20 cm long
Number of phases 4
Phase current 32 mA
Resistance per phase 200 ohm
Step angle 5.625° / 64
Gear ratio 1/64
Pull-in torque 450 gfcm
Noise <35 dB (120 Hz, no load at 10 cm)
Insulation class E
Weight 36 g
