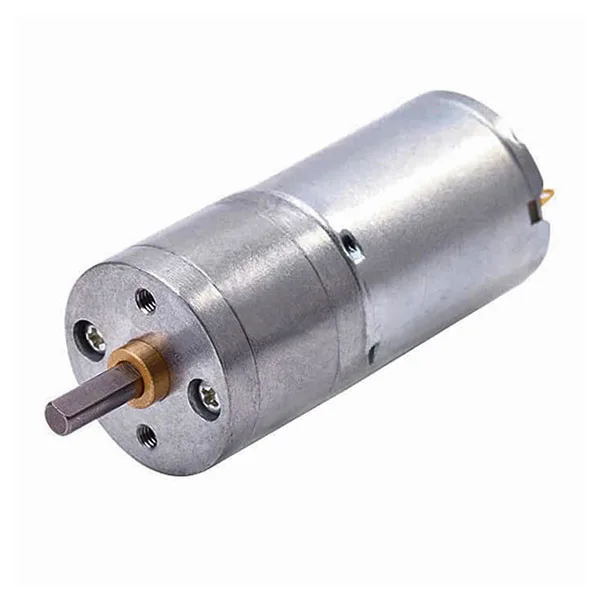

12V Gear Motor – 250 rpm
High-quality DC gear motor with a 21:1 reduction ratio. Ideal for applications requiring increased torque and reduced speed.
SKU 1606-JGA25370AEAN 8219671076869Item type: AssembledActuators
Description
| High-quality 12Vdc gear motor – 250 rpm, designed to deliver outstanding performance and reliability across a range of applications. With a 21:1 reduction ratio, it provides a significant torque increase and speed reduction, making it ideal for projects that require precise motion control.
This gear motor is fitted with high-precision metal gears, ensuring a long service life and efficient power transmission. Its rugged construction allows it to handle significant loads without compromising performance. Operating at a 12V supply voltage, this gear motor can be used in a wide range of applications and fields, such as robotics, industrial automation, home automation and more. The gear motor shaft is 12 mm long with a 4 mm diameter and a typical D-shape, making it easy to integrate and mount in various devices. |
||
|

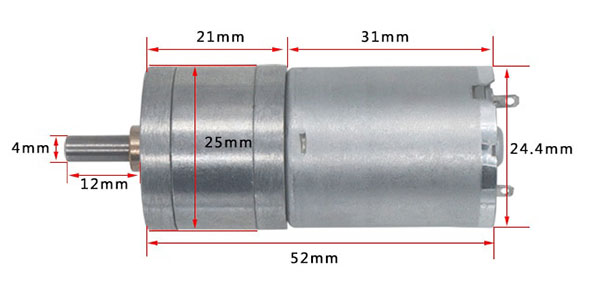

Dimensions (mm)
|
||
 |
Technical details
| Rated voltage | 12 Vdc |
|---|---|
| Reduction ratio | 21:1 |
| No-load speed | 280 rpm |
| No-load current | 60 mA |
| Rated speed under load | 220 rpm |
| Rated current under load | 300 mA |
| Rated torque under load | 0.50 kg-cm |
| Stall current | 1300 mA |
| Stall torque | 1.7 kg-cm |
| Shaft diameter | 4 mm |
| Mounting screws | M3 (not included) |
| Dimensions | 25 mm diameter / 52 mm body length |
| Weight | 100 grams |
