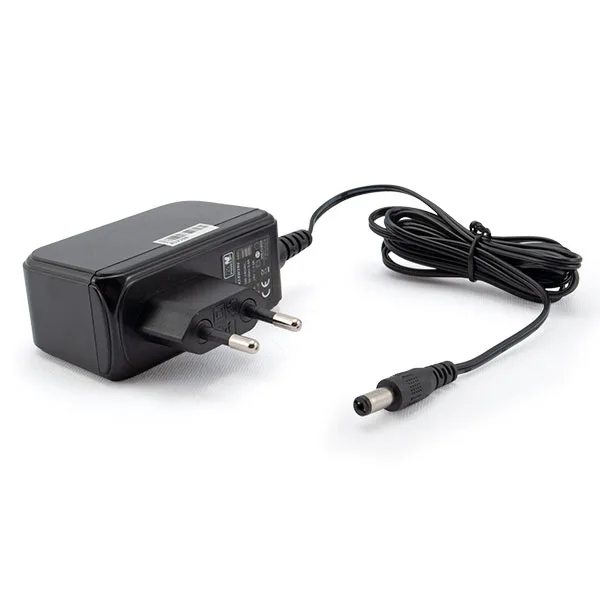

Switching Power Supply 12V / 1.5A – 18W
Compact switching power supply rated 18 W, with a regulated 12 Vdc output and a maximum current of 1.5 A. Protection against short circuit, overvoltage and overload. Ideal for electronic devices.
SKU 8245-ER18W12VEAN 5410329711245Output voltage: 12 VdcMains power supplies
Description
This reliable, compact switching power supply provides a stabilized 12 Vdc output, 18 W of power with a maximum current of 1.5 A. It features built-in protections against short circuits, overvoltage, and overload, ensuring safe and reliable operation. With an efficiency of 86.7%, the power supply delivers optimal performance while reducing energy consumption. Output stability and low ripple help maintain a constant voltage, preserving the integrity of connected devices.
Technical details
| Input voltage | 90 to 240 VAC - 50/60 Hz |
|---|---|
| Efficiency | 86.7% |
| Power | 18 W |
| Output voltage | 12 Vdc |
| Maximum output current | 1.5 A |
| Ripple voltage | 200 mVpp |
| No-load power consumption (max) | 0.075 W |
| Cable length | 1.5 meters |
| Plug | 5.5 x 2.1 mm, center positive |
| Operating temperature | 0°C to 40°C |
| Dimensions (mm) | 69.4 x 30 x 64.1 (L x W x H) |
| Weight | 99 grams |
