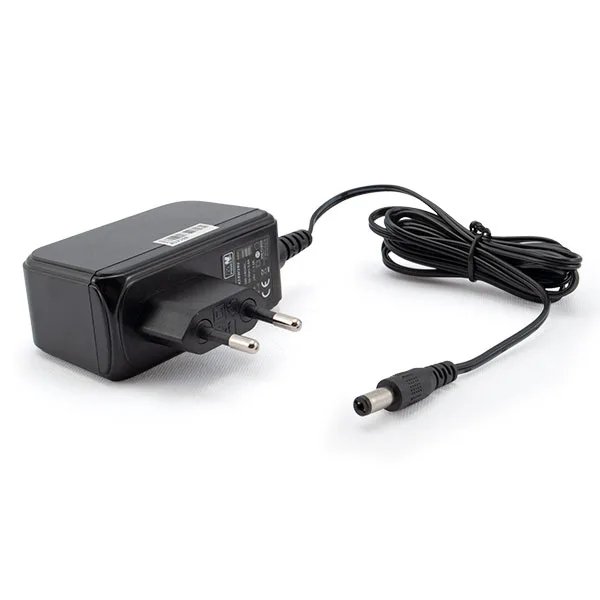

Switching power supply 15V / 1A – 15W
Compact switching power supply rated at 15 W, with a regulated 15 Vdc output and a maximum current of 1 A. Protection against short circuit, overvoltage and overload. Ideal for electronic devices.
SKU 8245-ER15W15VEAN 5410329711245Output voltage: 15 VdcMains power supplies
Description
This reliable, compact switching power supply provides a stabilized 15 Vdc output, 15 W of power with a maximum current of 1 A. It features built-in protections against short circuits, overvoltage, and overload, ensuring safe and reliable operation. With an efficiency of 84.5%, the power supply delivers optimal performance while reducing energy consumption. Output stability and low ripple help maintain a constant voltage, preserving the integrity of connected devices.
Technical details
| Input voltage | 90 to 240 VAC - 50/60 Hz |
|---|---|
| Efficiency | 84.5% |
| Power | 15 W |
| Output voltage | 15 Vdc |
| Maximum output current | 1 A |
| Ripple voltage | 200 mVpp |
| No-load power consumption (max) | 0.075 W |
| Cable length | 1.5 meters |
| Plug | 5.5 x 2.1 mm, center positive |
| Operating temperature | 0°C to 40°C |

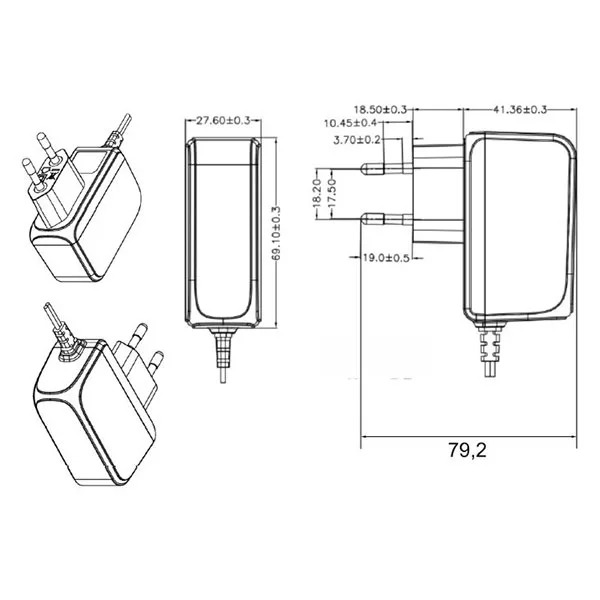

| Dimensions (mm) | 79.2 x 27.6 x 69.1 (L x W x H) |
| Weight | 105 grams |
