Switching power supply 24V / 1A – 24W
Compact 24 W switching power supply with a regulated 24 Vdc output and a maximum current of 1 A. Protected against short circuit, overvoltage and overload. Ideal for electronic equipment.
SKU 8245-ER24W24VEAN 5410329711245Output voltage: 24 VdcMains power supplies
Description
This reliable, compact switching power supply provides a stabilized 24 Vdc output, 24 W of power with a maximum current of 1 A. It features built-in protections against short circuits, overvoltage, and overload, ensuring safe and reliable operation. With an efficiency of 86.8%, the power supply delivers optimal performance while reducing energy consumption. Output stability and low ripple help maintain a constant voltage, preserving the integrity of connected devices.
Technical details
| Input voltage | 90 to 240 VAC - 50/60 Hz |
|---|---|
| Efficiency | 86.8% |
| Power | 24 W |
| Output voltage | 24 Vdc |
| Maximum output current | 1 A |
| Ripple voltage | 200 mVpp |
| No-load power consumption (max) | 0.075 W |
| Cable length | 1.5 meters |
| Plug | 5.5 x 2.1 mm, center positive |
| Operating temperature | 0°C ÷ 40°C |

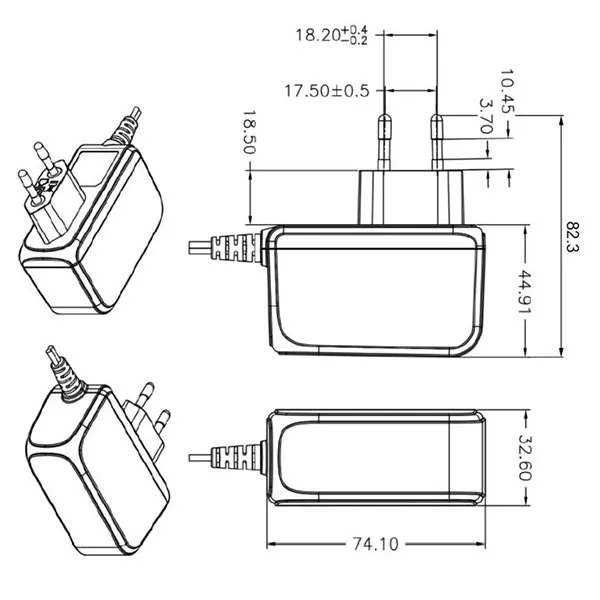

| Dimensions (mm) | 82.3 x 32.6 x 74.1 (L x W x H) |
| Weight | 112 grams |
