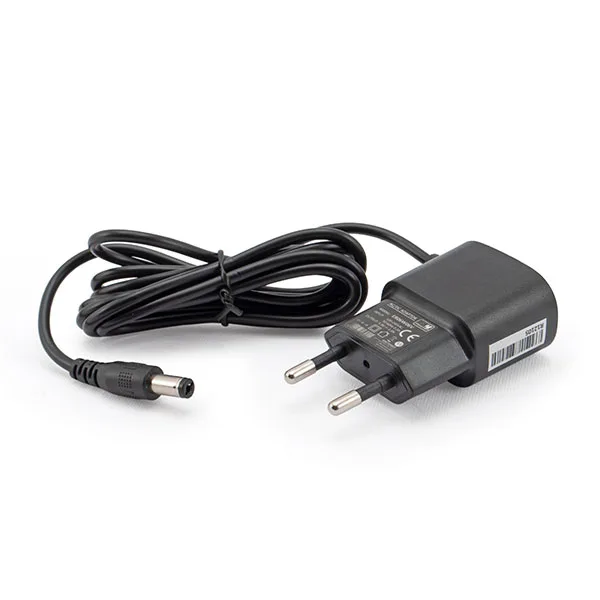

Switching Power Supply 6 V / 1 A – 6 W
Compact switching power supply rated 6 W, with a regulated 6 Vdc output and a maximum current of 1 A. Protected against short circuit, overvoltage and overload. Ideal for electronic devices.
SKU 8245-ER06W06VEAN 5410329711245Output voltage: 6 VdcMains power supplies
Description
This reliable, compact switching power supply provides a stabilized 6 Vdc output, 6 W of power, and a maximum current of 1 A. It features built-in protection against short circuits, overvoltage, and overload, ensuring safe and reliable operation. With 75% efficiency, it delivers optimal performance while reducing energy consumption. Output stability and low ripple help maintain a constant voltage, preserving the integrity of connected devices.
Technical details
| Input voltage | 90 to 240 VAC - 50/60 Hz |
|---|---|
| Efficiency | 75% |
| Power | 6 W |
| Output voltage | 6 Vdc |
| Maximum output current | 1 A |
| Ripple voltage | 200 mVpp |
| No-load power consumption (max) | 0.075 W |
| Cable length | 1.5 meters |
| Plug | 5.5 x 2.1 mm, center positive |
| Operating temperature | 0°C to 40°C |

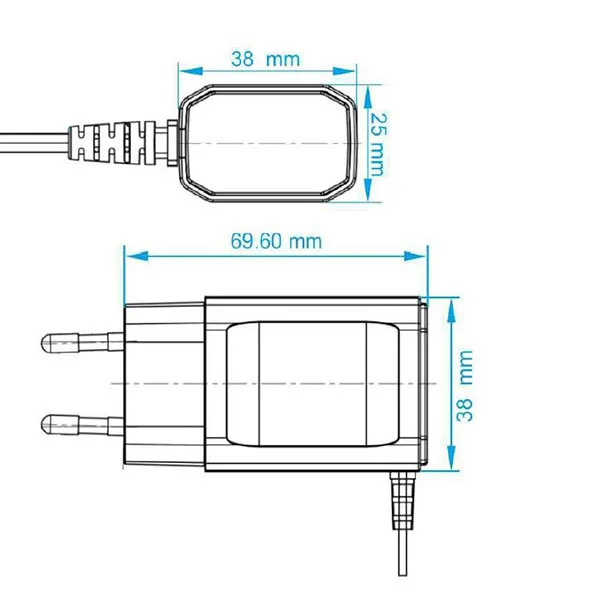

| Dimensions (mm) | 38 x 25 x 69.6 (L x W x H) |
| Weight | 80 grams |
