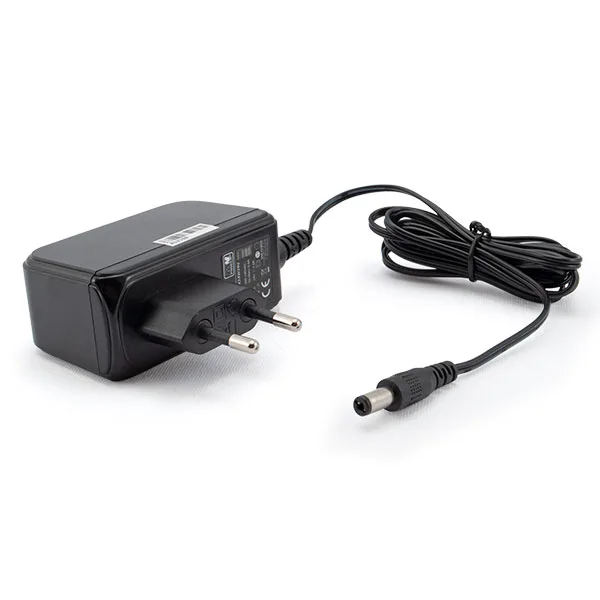

Switching power supply 9V / 1.5 A – 13.5W
Switching power supply with 9 VDC - 1.5 A output and DC plug connector
SKU 8822-AL9V1A5EAN 8219671081719Output voltage: 9 VdcMains power supplies
Description
Switching power supply with 9 VDC – 1.5 A output and DC plug connector. Short-circuit protected and with low power consumption when no load is connected. Designed for a wide range of devices.
Technical details
| Input | 100-240 VAC, 50/60 Hz, 0.3 A max |
|---|---|
| Power | 13.5 W max |
| Output voltage | 9 VDC - 1.5 A max |
| Efficiency | >85% |
| Cable length | 120 cm |
| Output connector | DC plug 5.5x2.1 |
| Protections | short circuit, overvoltage, and thermal |
| Operating temperature | 0°C to +40°C |
| Storage temperature | -20°C to +85°C |

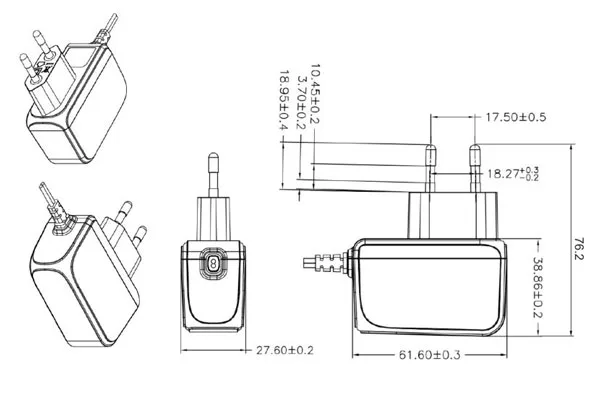

| Dimensions (mm) | 85.5x50x44 |
| Weight | 96 g |
| Certifications | CE, RoHS, FCC |
