Touch module with 7 high-efficiency LUXEON LEDs

The touch sensor needs no setting up: it calibrates itself automatically while in use, adapting to the conditions where it is installed.

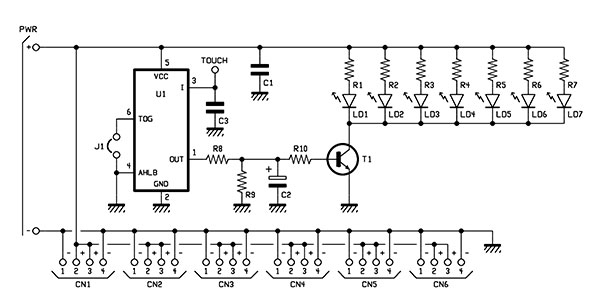

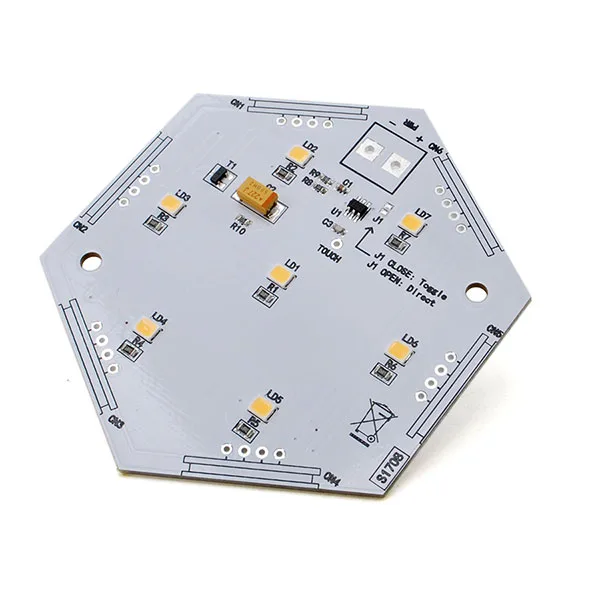

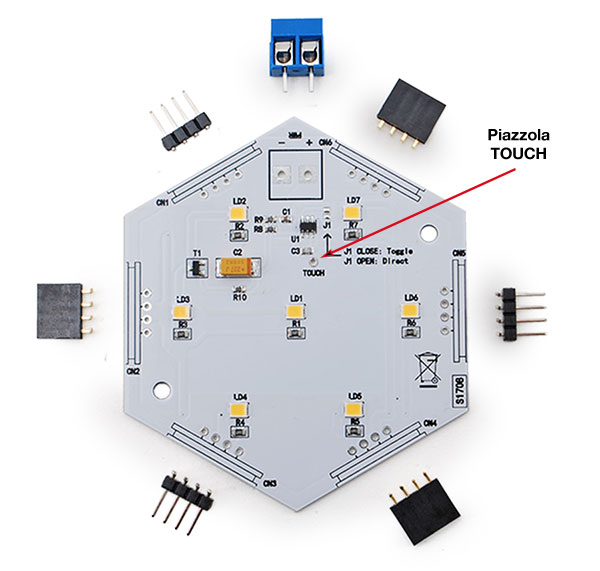

A conductive electrode has to be soldered to the TOUCH pad, shown in the picture below: a metal plate or a wire that works as the antenna/electrode for switching the light by touch. The module runs on a 5 Vdc supply and draws about 250 mA.

The light can work in two modes:

• Toggle mode: one touch turns the light on, the next touch fades it out.
• Direct mode: the light stays on for as long as the touch area is held, and fades out when it is released.

Soldering is required to complete the assembly. Supplied with assembly instructions.

The module comes with the SMD components already fitted, but the 5 mm pitch terminal block has to be soldered on, along with the connectors on the six sides if you want to build it up as a modular assembly.

• Current limiting resistor on each LED: 68 ohm

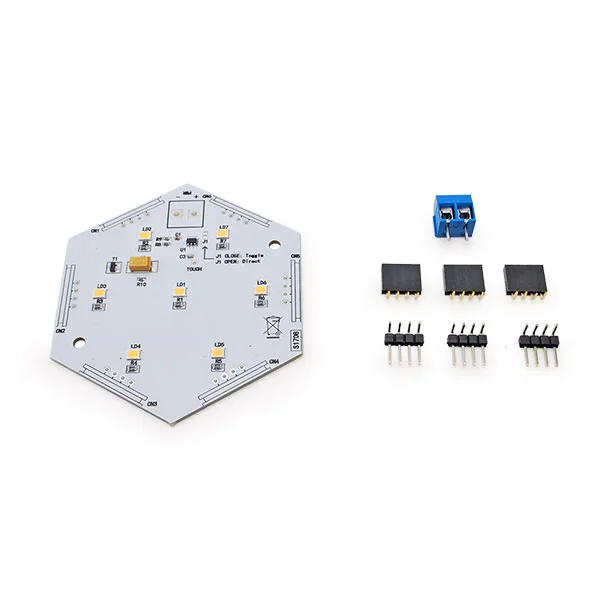

• Touch module with the SMD components already soldered x1

• 2-way terminal block, 5 mm pitch x1
• 4-way female pin strip, 90°, 2.54 mm pitch x3
• 4-way male pin strip, 90°, 2.54 mm pitch x3
