White COB LED Bar 12V 10W – 12 cm long

Bar of white COB LEDs coated in silicone rubber, built on an aluminium base for better heat dissipation

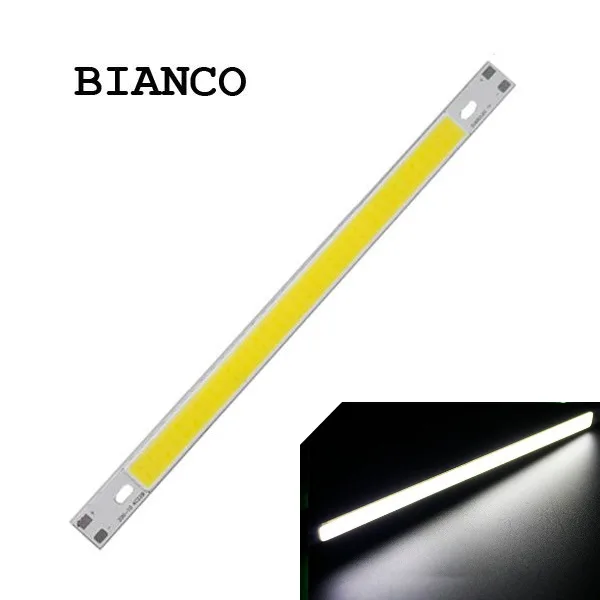

White COB LED Bar 12V 10W - 12 cm long - Image 1
White COB LED Bar 12V 10W - 12 cm long - Image 3

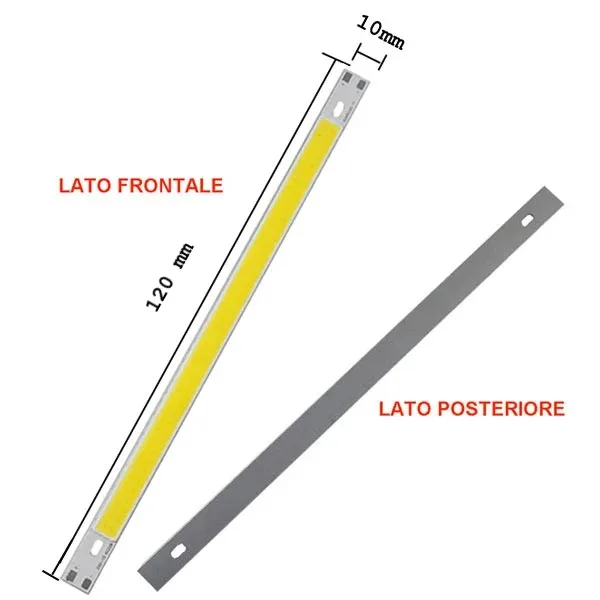

White COB LED Bar 12V 10W - 12 cm long - Image 4

SKU 1606-LEDCOB120WEAN 8219671112833Item type: Assembled

Description

Bar with white COB LEDs covered in silicone rubber, mounted on an aluminum support for better heat dissipation. It can be used in many ways, for example to create letters and numbers for advertising panels, as product lighting in shop windows, etc.

Warning! The power supply is not included.

Technical specifications

Technical details

Color White
LED type COB chip
Beam angle 120°
Luminous flux 100 lumens/watt
Average life 50,000 hours
Power supply 12 VDC
Power 10 watts
Current draw 750 mA
Operating temperature from -20°C to +60°C
Dimensions (mm) 120x10x3
Weight 11 grams
