Red COB LED bar 12V 15W – 20 cm long

Bar with red COB LEDs coated in silicone rubber, built on an aluminium base for better heat dissipation

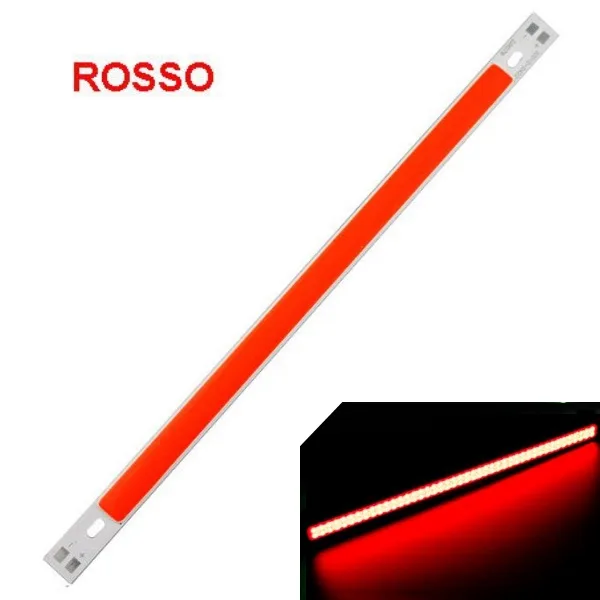

Red COB LED bar 12V 15W - 20 cm long - Image 1
Red COB LED bar 12V 15W - 20 cm long - Image 3
Red COB LED bar 12V 15W - 20 cm long - Image 4
Red COB LED bar 12V 15W - 20 cm long - Image 5

SKU 1606-LEDCOB200REAN 8219671111256Item type: Assembled

Description

Bar with red COB LEDs covered in silicone rubber, mounted on an aluminum support for better heat dissipation. It can be used in many ways, for example to make letters and numbers for advertising panels, as product lighting in shop windows, etc.

Warning! The power supply is not included.

Technical specifications

Technical details

Color Red
LED type COB chip
Beam angle 120°
Luminous flux 100 lumens/watt
Average life 50,000 hours
Power supply 12 VDC
Power 15 watts
Current draw 900 mA
Operating temperature from -20°C to +60°C

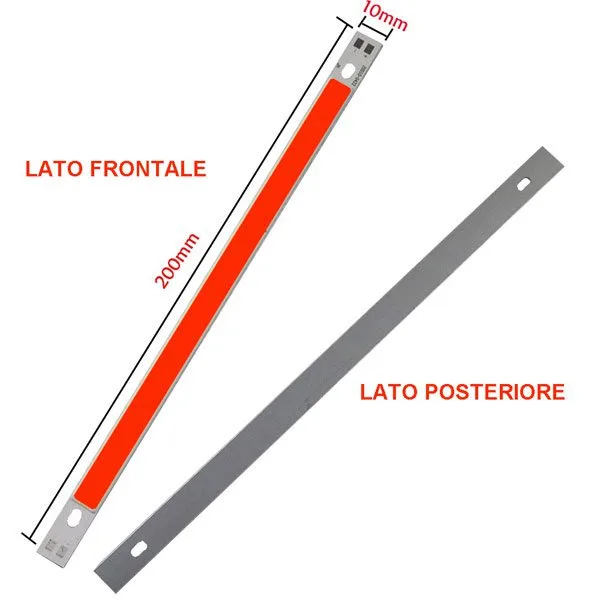

Dimensions (mm) 200x10x3
Weight 11 grams
