Tremolo effect audio board

Description

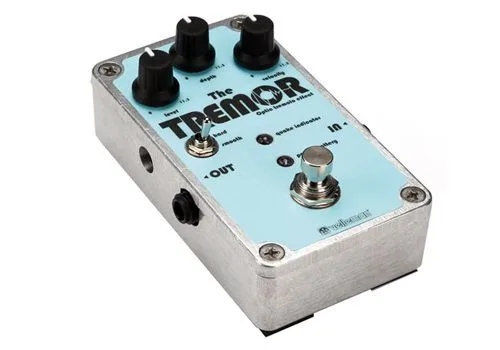

Particularly suitable for use with the guitar, but not only, this kit allows you to build an analog tremolo effect pedal. It features high-quality Neutrik 6.35 mm audio jack input and output, status LEDs for tremolo effect and power, controls for level, depth, speed, hard/smooth (square and triangular waveforms), all enclosed in a sturdy metal housing. It automatically powers off when no cable is connected to the input jack. Powered by a 9 V battery type 6LR61 (not included) or an external power supply (not included). Dimensions (mm): 115x65x25.

Documentation and useful links

• Assembly manual
• Datasheet
• Resistor colour code
