TTL – RS485 converter

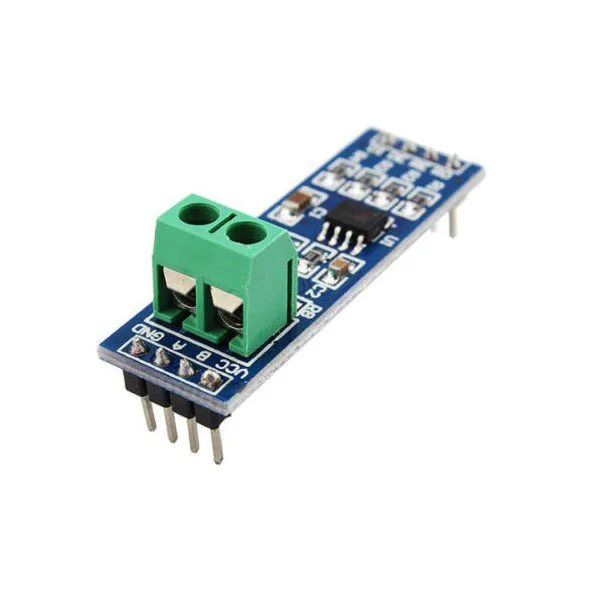

Small TTL-RS485 converter based on the Maxim MAX485 chip
TTL - RS485 converter - Image 1

SKU 2846-TTLRS485EAN 8219671096157Item type: Assembled

Description

Small TTL-RS485 converter based on the Maxim MAX485 chip. It allows bidirectional data communication over distances of up to 1200 metres and at data rates of up to 2.5 Mbps. The module runs on 5 Volt and uses 5 volt logic levels, which let it interface with the hardware serial ports of microcontrollers such as Arduino, Microchip PICs and so on. Dimensions (mm): 45x20x15.

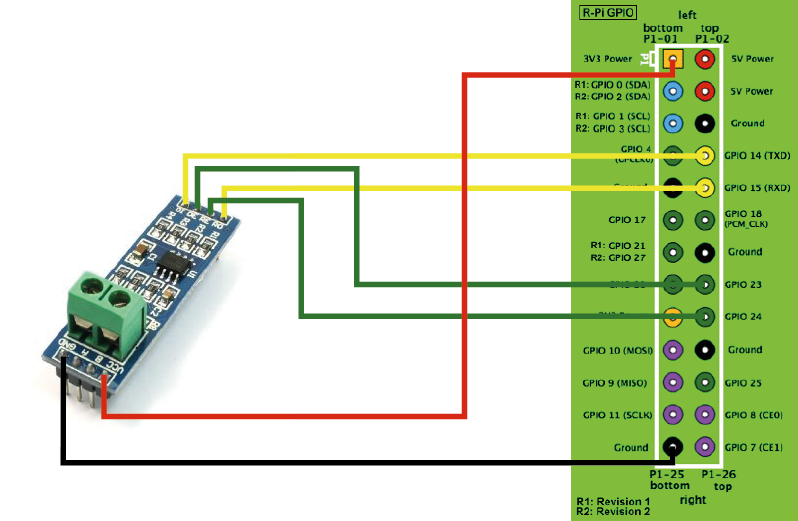

PINOUT

  • A: non-inverting receiver input and non-inverting Driver output
  • B: inverting receiver input and inverting Driver output
  • R0: receiver output (to be connected to the Rx pin of the microcontroller)
  • DI: Driver input (to the Tx pin of the microcontroller)
Documentation and useful links

Technical details

Dimensions (mm) 45x20x15
VCC + 5 V
GND negative
RE receiver output enable (active low)
DE Driver output enable (active high)
