USB to RS232-485-TTL converter

USB to RS232, USB to RS485, USB to TTL (UART) converter

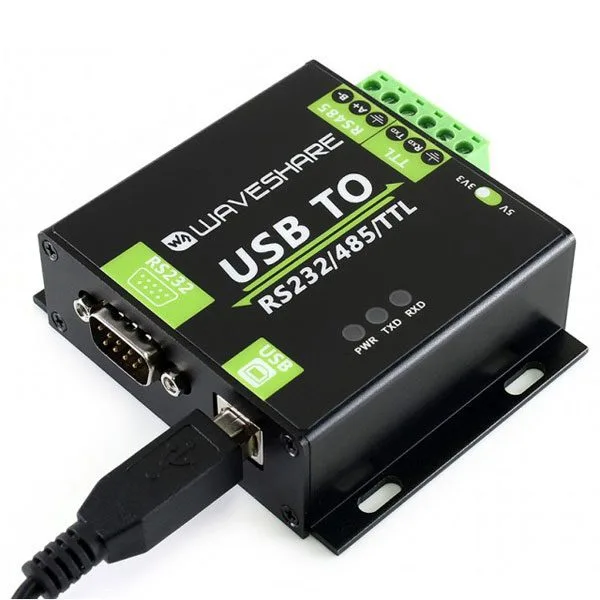

USB to RS232-485-TTL converter - Image 1

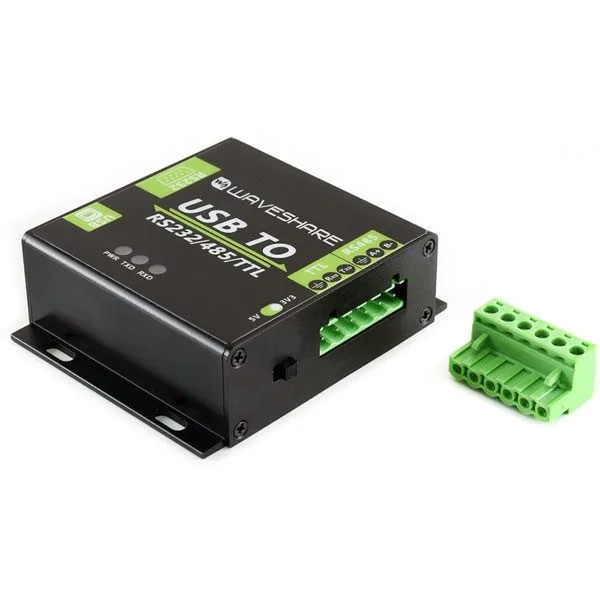

USB to RS232-485-TTL converter - Image 3
USB to RS232-485-TTL converter - Image 4

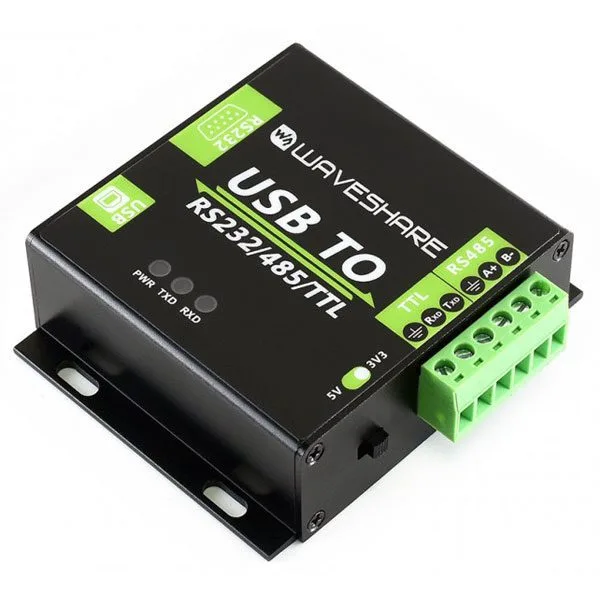

USB to RS232-485-TTL converter - Image 5
USB to RS232-485-TTL converter - Image 6

SKU 2850-INDCONV15817EAN 8219671115506Item type: Assembled

Description

USB to RS232, USB to RS485, USB to TTL (UART) converter. It has a fully automatic, delay-free transceiver circuit for fast, stable communication. Built-in 3.3V / 5V TTL serial voltage converter, with TTL level selection by switch. 3 status LEDs show power, TXD and RXD. The housing is made of aluminium alloy, which makes it solid and hard-wearing. The USB-B and RS232 connectors are high quality. Thanks to its fast, stable, reliable and safe communication; it is the ideal choice for industrial control equipment and / or applications with demanding communication requirements. It has protection circuits such as power isolation, magnetic isolation, self-resetting fuse, TVS (transient voltage suppressor) and so on.
Technical features
  • USB TO RS232, USB TO RS485, USB TO TTL (UART)
  • Uses the original FT232RL chip: fast, stable and reliable communication, better compatibility
  • Power isolation: provides a stable isolated voltage, no extra power supply needed for the isolated end
  • Magnetic isolation: gives signal isolation, high reliability, interference immunity and low power consumption
  • Built-in TVS (transient voltage suppressor), effectively suppresses surge and transient voltage in the circuit, lightning-proof and anti-static
  • Built-in self-resetting fuse and protection diodes, guarantees stable current / voltage outputs, provides overcurrent / overvoltage protection and improves shock resistance
  • Fully automatic, delay-free transceiver circuit, ensures the USB port communicates with the various interfaces quickly and stably, without interfering with each other
  • Built-in 3.3V / 5V TTL serial voltage converter, TTL level selection by switch
  • Sandblasted and anodised aluminium alloy housing, solid and hard-wearing
  • 3 LEDs to indicate power and transceiver status
  • High-quality USB-B and RS232 connectors
Technical specifications
  • RS485:
    – Connector: screw terminal
    – Protection: 600 W lightning-proof surge suppressor, 15KV ESD protection
    – Transmission distance: ~ 1200 metres
    – Transmission mode: point-to-multipoint (up to 32 nodes; repeaters are recommended for 16 nodes or more)
  • RS232:
    – Connector: male DB9
    – Protection: TVS diode, surge protection, ESD protection
    – Transmission distance: ~ 15 metres
  • TTL (UART):
    – Operating voltage: 3.3 V / 5 V.
    – Connector: screw terminal
    – Pins: TXD, RXD, GND
    – Protection: protection diode, surge / negative voltage proof
  • Status LEDs:
    – PWR (red LED)
    – TXD (green LED)
    – RXD (blue LED)

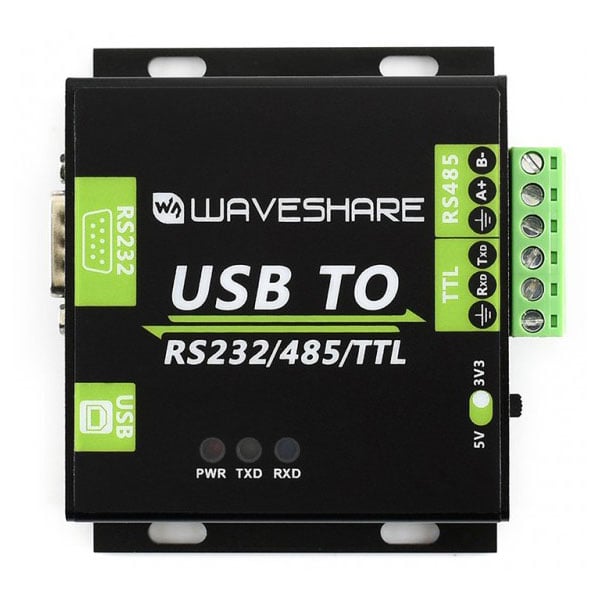

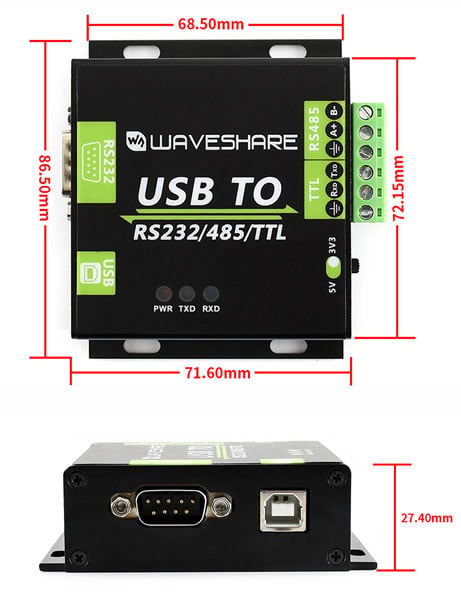

Dimensions
Documentation and useful links

Technical details

Product type optically isolated industrial converter
Baud rate 300-921600 bps
Host port USB
Device port RS485 / RS232 / TTL
Operating voltage 5 volt
Connector USB-B
Protection 200 mA self-resetting fuse, isolated output
Transmission distance about 5 metres
Pins A +, B-, GND
Direction control automatic hardware control
Transmission mode point-to-point
Operating temperature -15℃ to +70℃
Humidity 5%RH ~ 95%RH
Supported operating systems Windows 10 / 8.1 / 8 / 7 / XP
