Twin TV Aerial Amplifier (DVB-T / DVB-T2 / DVB-C)

Aerial amplifier for 2 devices (DVB-T, DVB-T2, FM radio, DAB+) or cable TV (DVB-C).
Twin TV Aerial Amplifier (DVB-T / DVB-T2 / DVB-C) - Image 1
Twin TV Aerial Amplifier (DVB-T / DVB-T2 / DVB-C) - Image 3
Twin TV Aerial Amplifier (DVB-T / DVB-T2 / DVB-C) - Image 4
Twin TV Aerial Amplifier (DVB-T / DVB-T2 / DVB-C) - Image 5
Twin TV Aerial Amplifier (DVB-T / DVB-T2 / DVB-C) - Image 6

SKU 8228-WT67226EAN 8592718018061Item type: Assembled

Description

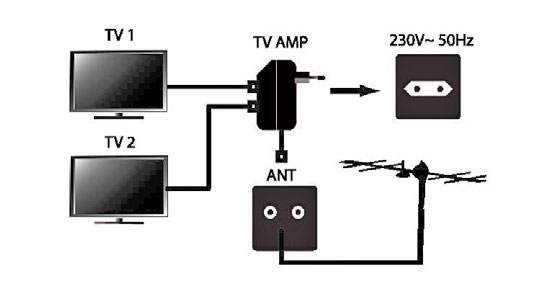

Aerial amplifier with a maximum gain of 15dB per channel. Ideal for boosting the signal over long runs, it lets you connect up to 2 devices (DVB-T, DVB-T2, FM radio, DAB+) or cable TV (DVB-C). Power supply: 230 VAC (built-in power supply). The pack also contains 1 cable, 1 metre long, with an aerial plug and socket.

Technical details

Power supply 230 VAC (built-in power supply)
Consumption 2.7 watts
Frequency range 47 to 862 MHz
Gain 2x max. 15 dB
Impedance 75 ohm
Input Coaxial socket
Output Coaxial plug
Signal amplification Yes
Colour white
Dimensions (mm) 86 x 58.5 x 77.5
Weight 160 grams
