Ultrasonic Distance Sensor

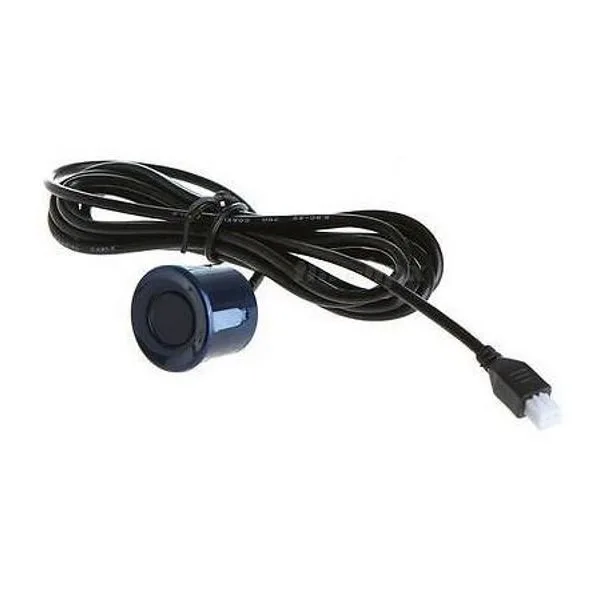

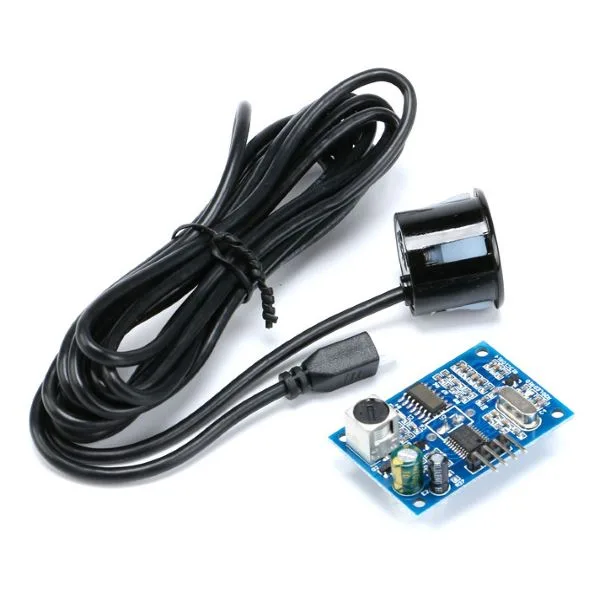

Ultrasonic sensor module able to detect distance up to 4.5 metres with 0.5 cm accuracy. Waterproof 40 kHz ultrasonic capsule with a connecting cable over 2 metres long
SKU 1606-JSN-SR04TEAN 8219671088244Item type: AssembledSensors, Sensors
Description

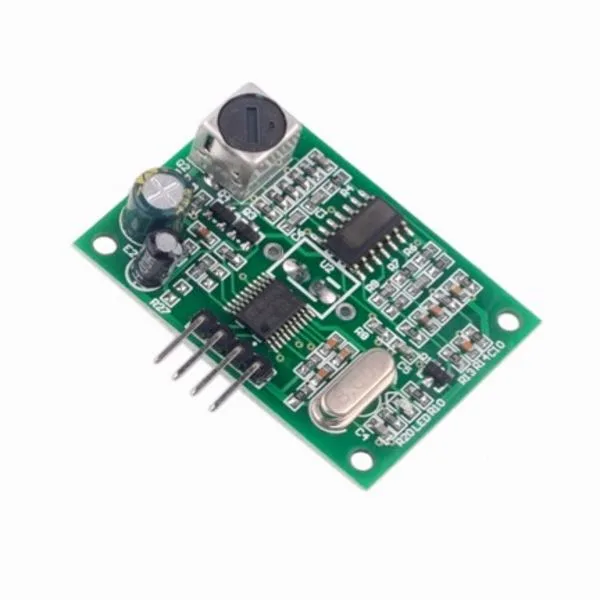

Ultrasonic sensor module capable of detecting distance up to 4.5 meters with an accuracy of 0.5 cm. Waterproof 40 kHz ultrasonic capsule with a connecting cable over 2 meters. Power supply: 5 Vdc, can be interfaced directly with Arduino.
Pinouts
- echo(R) : Echo Output (Requires pullup to VCC)
- GND
- Note: version 2.0 requires a pullup resistor on the echo(R) output
Technical details
| Power supply | 5 Vdc, can be interfaced directly with Arduino |
|---|---|
| Supply voltage | 5V DC |
| Version | 2.0 |
| Working current | 30mA |
| Emission frequency | 40kHz |
| Maximum distance | 4.5m |
| Minimum distance | 25 cm |
| Module dimensions | 41mm x 28.5mm |
| Resolution | approx. 0.5cm |
| Angle | 70 degrees |
| Working temperature | -10 ~ 70 ℃ |
| VCC | +5V (positive power supply) |
| trig(T) | Trigger Input |
