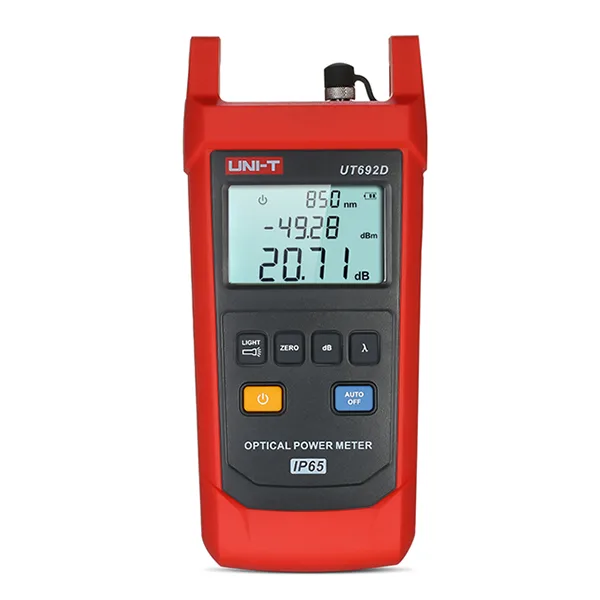

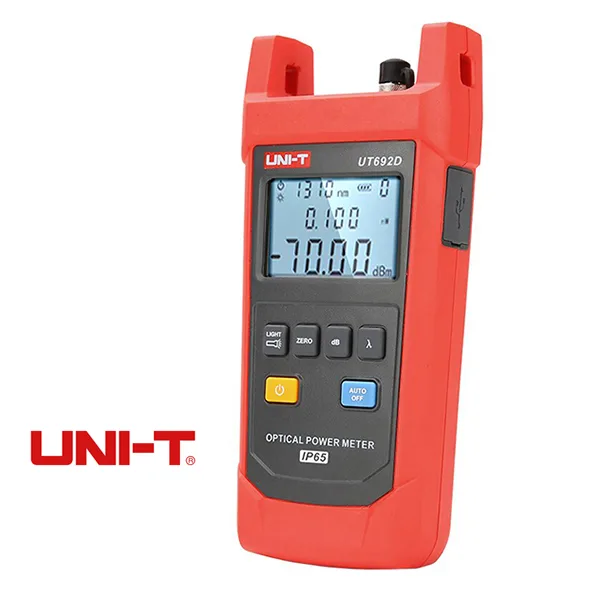

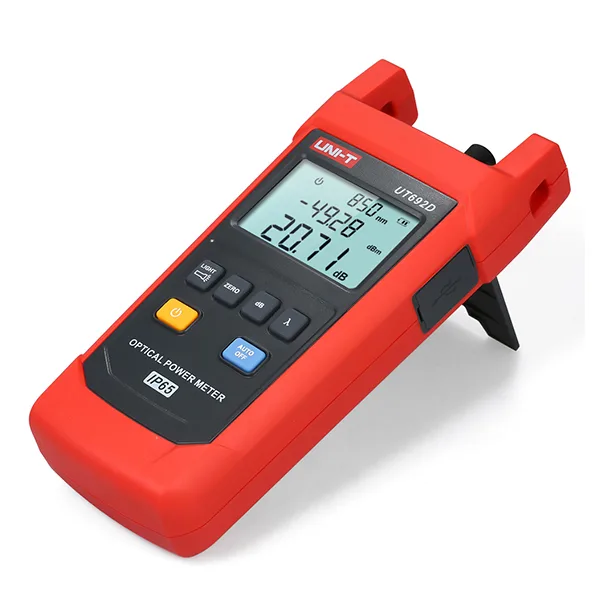

UNI-T UT692D optical power meter for fiber optic signals

Its self-calibration function lets users customize the calibration settings to suit their needs, ensuring consistently precise, optimal results. Simultaneous display of measurements in milliwatts and decibel-milliwatts greatly simplifies data interpretation.

It also supports as many as eight different wavelengths, stores wavelengths and reference power levels, and offers an intuitive interface for effortless operation. Compliant with electromagnetic compatibility standards, this instrument is the ideal choice for ensuring reliable optical performance and precise measurements.

• IP65 protection rating: the device is protected against dust and water, making it suitable for use in harsh environments.
• Auto power-off: the device automatically switches off after a period of inactivity to save battery power.
• Low battery indication: alerts you when the battery is low and needs to be replaced.
• Backlight on/off: ability to turn the screen backlight on or off at your discretion.
• Flashlight function: this function allows the device to be used as a flashlight or auxiliary light source.
• Self-calibration function: the user can customize the unit’s calibration settings to obtain more precise results or to align with a particular standard.
• Simultaneous display of linear mW and non-linear dBm: ability to display optical power in linear milliwatts and non-linear decibel-milliwatts.
• Wavelength storage function: ability to store the wavelengths used.
• Eight pre-calibrated wavelengths (850, 980, 1300, 1310, 1490, 1550, 1625 and 1650 nm): covers a wide range of wavelengths used in optical communications.
• Compliant with EN61326-1:2013 and EN61326-2-2:2013 standards: this instrument meets electromagnetic compatibility standards.

• Low battery indication: the low battery warning appears at approximately 3.5 V, with automatic shutdown at approximately 3.3 V.
• Relative humidity in operating environment: 20~75%.
• Relative humidity in storage environment: 10~90%.

• UT692D x1

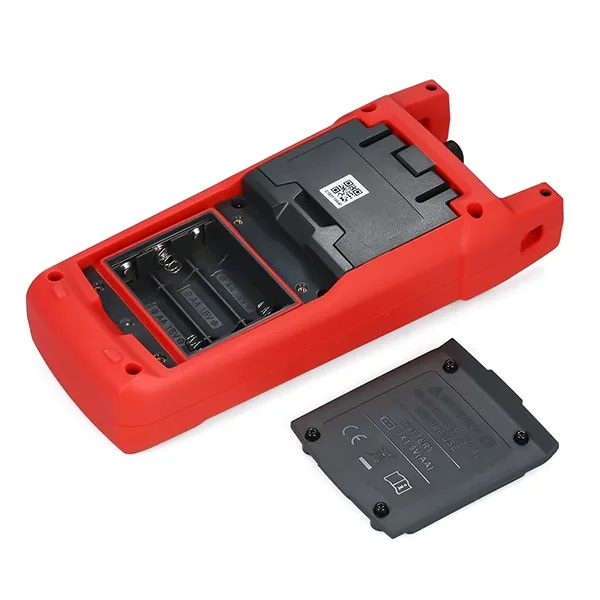

• AA-type 1.5V batteries x3

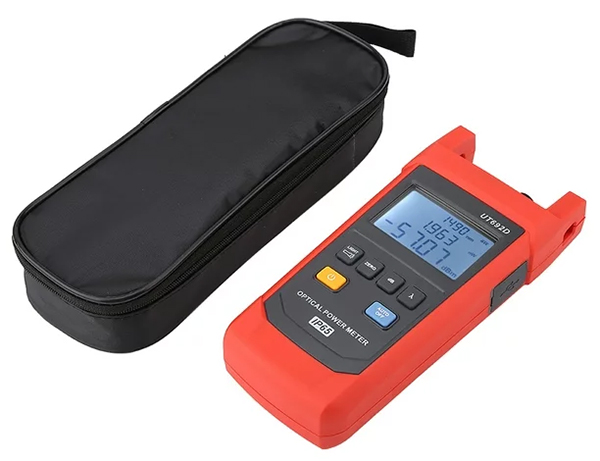

• Plasticized fabric carrying case x1
• User manual in English x1
