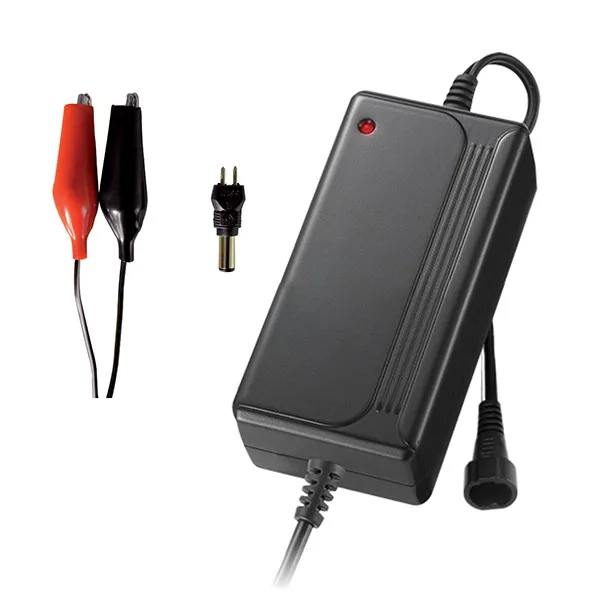

Universal charger for 1S–4S Li-Ion/Li-Po battery packs – 1A
Compact universal charger for 1S to 4S Li-Ion and Li-Po battery packs, with 100–240 V AC input and European plug.
SKU 5600-AP3714EAN 8055323217927Output voltage: Manually adjustableBattery chargers
Description
|
Universal charger designed to recharge 1S to 4S Li-Ion and Li-Po battery packs safely and efficiently. It supports single cells and packs of up to 4 cells, automatically setting the output voltage to match the configuration connected (3.7V / 7.4V / 11.1V / 14.8V DC). Charging is carried out at a constant current of 1 A until the end-of-charge voltage for the configuration in use is reached: 4.2V for 1S, 8.4V for 2S, 12.6V for 3S and 16.8V for 4S. Once that voltage is reached, the charger holds it constant and lets the current fall progressively to a minimum level, so the charge is completed without any risk of overcharging or damaging the battery. |
| Technical specifications |
|
| Package contents |
|
Technical details
| Rechargeable battery type | Single cell or 1S to 4S Li-Ion / Li-Po packs |
|---|---|
| Input | 100 - 240V AC 50-60Hz 0.4A max - European plug |
| Output voltage | 3.7V / 7.4V / 11.1V / 14.8V DC |
| Charging current | 1A |
| End-of-charge voltage | 4.2V (1S) / 8.4V (2S) / 12.6V (3S) / 16.8V (4S) |
| Reverse current | <500uA at 16.8V |
| Operating temperature | 0°C ~ 25°C |
| Storage temperature | -25°C ~ 60°C |
| Mains lead length (VAC) | 180cm |
| Output lead length | 150cm |
| Connector size | 5.5 x 2.5mm |
| Weight | 200g |
| Dimensions | 100 x 51 x 31mm |
