Universal Power Supply 9 V-24 V – 1.5 A with 7 Adapters

Compact 24 W switching power supply with output voltage selectable from 9 to 24 Vdc (max.1.5 A)

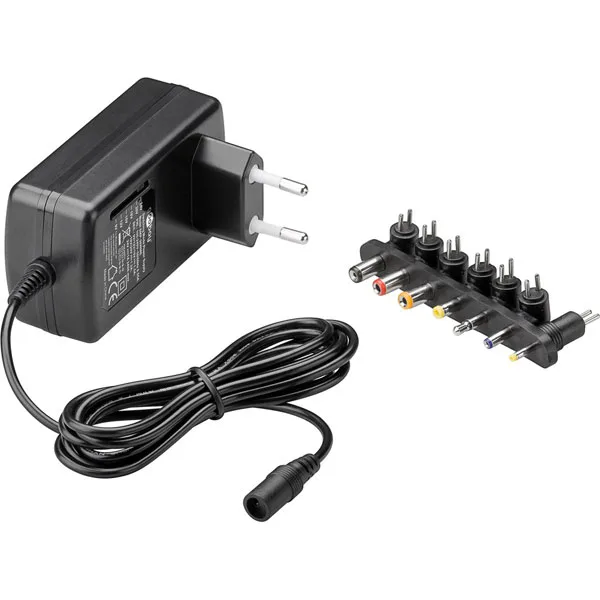

Universal Power Supply 9 V-24 V - 1.5 A with 7 Adapters - Image 1

SKU 8228-WT54799EAN 4040849547997Output voltage: 12 Vdc, 15 Vdc, 18 Vdc, 20 Vdc, 24 Vdc, 9 Vdc, Manually adjustable

Description

Compact 24 W switching power supply with selectable output voltage from 9 to 24 Vdc (max. 1.5 A). Features short-circuit, overheat, and overcurrent protection. Stabilized output with low ripple. High efficiency and low power consumption. Includes 7 different interchangeable output adapters.

Technical specifications

  • 6 Selectable output voltages: from 9 to 24 Vdc (9-12-15-18-20-24)
  • Adapters:
    – 3.5 mm jack plug
    – DC adapters: 2.35×0.70 mm / 3.50×1.40 mm / 4×1.70 mm / 5.50×1.50 mm / 5.50×2.10 mm / 5.50×2.50 mm

Technical details

Input voltage 100 to 240 Vac - 50/60 Hz
No-load consumption 0.08 W
Power 24 W
Maximum output current 1.5 A
Cable length 1.65 m
Polarity center positive
Dimensions (mm) 85.6x69.2x50.5
Weight 148.6 g
