USB Power Supply – 4 outputs, 30 watt

Power supply with 4 USB 2.0 (type A) outputs and a max power
USB Power Supply - 4 outputs, 30 watt - Image 1

SKU 8228-WT44962EAN 4040849449628Output voltage: 5 Vdc

Description

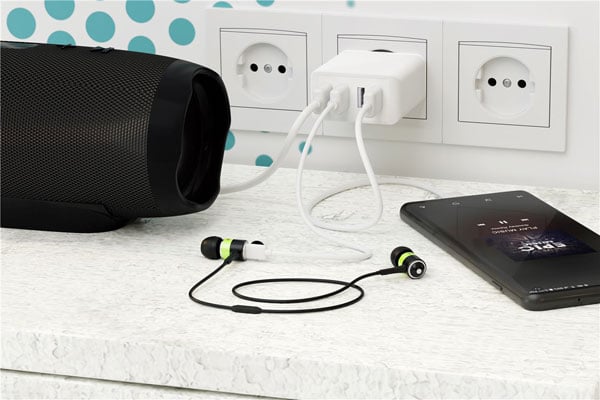

Power supply with 4 USB 2.0 (type A) outputs and a max. power of 30 watt. It can charge the batteries of 4 devices at the same time (smartphones, tablets and so on). It features intelligent charge recognition (ID Chip Technology) and protection against overload, overheating and short circuit.
Technical specifications

Technical details

Input 100-240 Vac, 50/60 Hz, 1 A
No-load consumption 0.09 watt

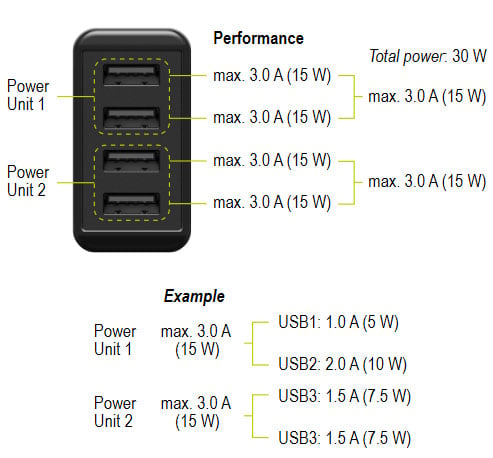

USB1 and USB2 5 V (DC) - 3 A max. (15 watt)
USB3 and USB4 5 V (DC) - 3 A max. (15 watt)
Total output 5 V (DC) – 6 A max. (30 watt max.)
Output connectors 4 USB 2.0 (Type A)
Protection rating IP20
Protection class II
Colour white
Dimensions (mm) 94.1x51x27.3
Weight 84 grams
