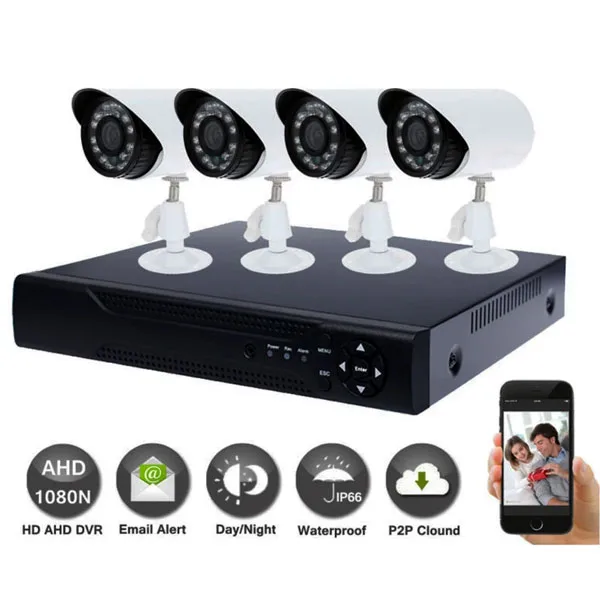

Video surveillance set: DVR + 4 cameras + cables and mouse

Description

Make your home, shop, or office safer with this 4-channel video surveillance and recording system.

It installs in minutes and allows remote viewing via a PC connected to the Internet and smartphones (iPhone, iPad, Android) with the ability to record and back up.

The set includes a 4-input DVR that can operate in both HD (AHD / CVI / TVI) and analog modes, a mouse, four outdoor AHD 1080P bullet cameras (IP66) with IR illuminators and mounting brackets, two 12 VDC power supplies (one for the cameras and one for the DVR), four 14-meter video cables with a male BNC connector on one end, camera power cable (DC socket on one end and four DC plugs on the other) and power plug (2.1×5.5 mm), and on the other end a male BNC connector and power plug (2.1×5.5 mm).

Note: Hard disk not included (see related products).

4-Channel DVR Features

4-input DVR that can operate in both HD (AHD / CVI / TVI) and analog modes. It features HDMI, VGA, and composite video outputs; 4 audio inputs (mono) and 1 output (mono); motion detection and RS485 interface for PTZ camera control. Remote viewing via PC connected to the Internet and smartphones (iOS, Android) with recording and backup capability. OSD (On Screen Display) function manageable via mouse. The package includes: DVR, mouse, power adapter (12 VDC – 2A output) and quick installation guide in Italian.

Note: Hard disk not included (see related products).

• Video outputs:
  – 1 HDMI
  – 1 VGA
  – 1 BNC (composite)
• Audio channels (mono):
  – 4 inputs (RCA connector)
  – 1 output (RCA connector)
• Alarm:
  – Email: sends images to a user-defined email account
• Video display:
  – OSD (On Screen Display): Channel title, Time, Video loss, Alarm, Motion detection, Recording
• Motion Detection: each screen can be set to 192 (16×12) detection areas; sensitivity can be set to multiple levels
• Recording:
  – Recording modes: Manual / Alarm / Motion detection / Scheduled
• Playback and backup:
  – Search modes: time, calendar, event, channel
  – Playback modes: Play, Pause, Stop, Fast, Reverse
  – Smartphone playback: 4 channels
  – Backup modes: USB flash drive and network backup
• Network:
  – Interface: 1x RJ45 10M / 100M
  – Network protocols: DHCP / PPPOE / FTP / DNS / DDNS / NTP
  – CMS software: Supports Windows 7 / Windows 8 / Windows 10
  – Smartphone: iPhone, iPad, Android, Android pad
• PTZ control: Yes
• Hard disk drive:
  – 1 SATA interface
  – Capacity: 2.5″ / 3.5″ SATA, up to 6 TB
• Menu language: Italian, German, French, Portuguese, Spanish, English, Chinese, Czech, Russian, Thai, Turkish, Polish, Hungarian, Korean, Greek, Dutch
• 2 USB 2.0 ports: used for saving and for the mouse
• Power supply: 12 VDC 2A – via 220 VAC power adapter (included)
• Consumption: < 15 watts (without hard disk)
• Operating temperature: from -10°C to +55°C
• Dimensions (mm): 255x215x43
• Weight: 706 g (without hard disk)

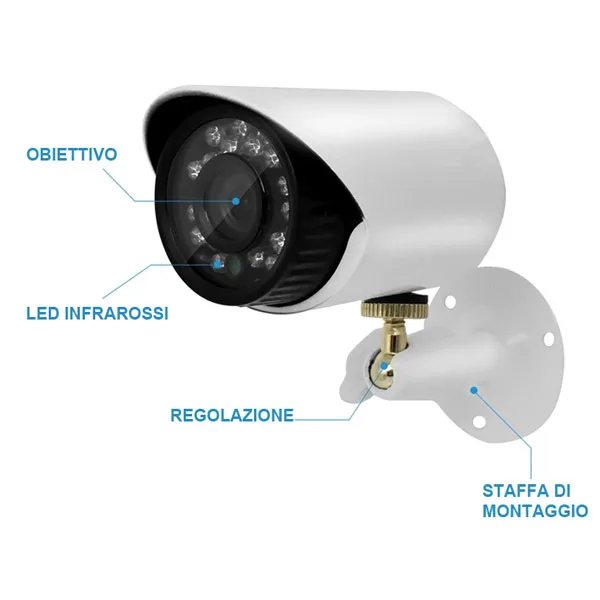

Outdoor Bullet Camera Features

Outdoor waterproof (IP66) color bullet camera with 2 Megapixel resolution. Equipped with a 1/3″ CMOS image sensor and processor XM 330+2003 and a 3.6 mm lens. It features 24 infrared LEDs that ensure optimal vision even in critical light conditions. The IR LEDs activate automatically below a certain light threshold and can illuminate up to a distance of 20 meters. The camera comes complete with a metal mounting bracket.

• Processor + Image sensor: CMOS 1/3 “XM 330 + 2003
• Effective pixels: 2 MPX – 1920(H)*1080(V)
• Lens: 3.6 mm
• Protection rating: IP66
• TV system: PAL/NTSC
• S/N ratio: ≥55dB (AGC Off)
• Video output: AHD HD and CVBS (BNC connector)
• Day & Night: Yes, automatic
• Gamma correction: >R0.45
• Electronic shutter speed: from 4/25 s to 1/45.000 s
• White balance: automatic
• Gain control: automatic
• BLC: automatic
• IR illuminator:
  – Number of LEDs: 24
  – Range: 20 meters
• Power supply: 12 VDC
• Consumption: 3 watts
• Operating temperature: from -10℃ to +55℃
• Humidity: 10% – 90% relative humidity
• Dimensions (mm): 170x64x60
• Weight: 190 grams (without bracket)
