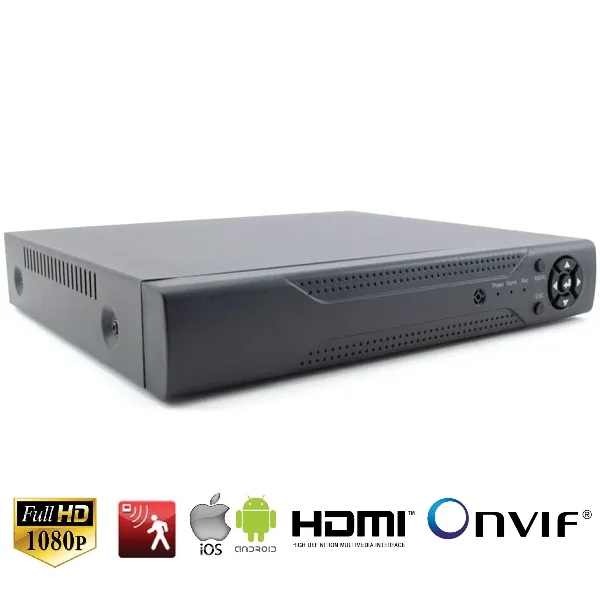

5-in-1 DVR Recorder – 16 Channels

Description

16-channel video recorder 5-in-1 (AHD / CVI / TVI / IP / Analog), with professional features. It has 16 video inputs that can be used in both HD (AHD / CVI / TVI) and analog modes; HDMI, VGA, and composite video outputs; 1 audio input (mono) and 1 output (mono); motion detection and RS485 interface for controlling PTZ cameras. It is equipped with an Ethernet interface (10-100 Base-T) that allows managing up to 16 IP cameras. Remote viewing via PC connected to the Internet and Smartphone (iOS, Android) with the ability to make recordings and backups. OSD (On Screen Display) function manageable via mouse. The package includes: DVR, mouse, power adapter (with 12 VDC – 2A output), and quick installation guide in Italian.

N.B. Hard disk not included.

Rear panel

Mouse and power adapter included

Technical features

• Networking functions: remote surveillance on any PC connected to the Internet via browser and proprietary software

Technical specifications

• Video inputs:
  – IP: 8 channels 5MPx
• Video outputs:
  – 1 HDMI
  – 1 VGA
• Audio channels (mono):
  – 1 input (RCA jack)
  – 1 output (RCA jacks)
• Alarm:
  – Email: sending images to a user-defined email account
• Video display:
  – HDMI: resolution 1920x1080P / 1280×1024 / 1280×720 / 1024×768
  – Channel display: 9 channels / 8 channels / 4 channels / 1 channel
  – Privacy Masking: rectangular zones (per camera)
  – OSD (On Screen Display): Channel title, Time, Video loss, Alarm, Motion detection, Recording
• Motion Detection: each screen can be set to 192 (16×12) detection areas; sensitivity can be set to multiple levels
• Recording:
  – Video compression: H.265
  – Audio compression: G.711A
  – Resolution: Half 1080P (960×1080); 720P (1280×720); 960H (P:960×576 / N:960×480)
  – Recording modes: Manual / Alarm / Motion detection / Scheduled
• Playback and backup:
  – Decoding capacity: 2x5Mpx-N@12fps (6-in-1); 4x4Mpx-N@15fps (6-in-1); 4x1080P@15fps (6-in-1)
  – Local playback: 16 channels (analog input mode)
  – Search modes: time, calendar, event, channel
  – Playback modes: Play, Pause, Stop, Fast, Rewind
  – Smartphone playback: 4 channels
  – Backup modes: USB flash drive and network backup
• Network:
  – Interface: 1x RJ45 10M / 100M
  – Network protocols: HTTP, IPv4, IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP
  – DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
  – WEB Browser: IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
  – CMS Software: Supports Windows 7 / Windows 8 / Windows 10
  – Extra Stream: CIF (1~25 fps)
  – Smartphone: iPhone, ipad, Android, Android pad
• PTZ control: Yes
• Hard Disk Driver:
  – 1 SATA Interface
  – Capacity: 2.5″ / 3.5″ SATA, up to 8 TB
• Menu language: Italian, German, French, Portuguese, Spanish, English, Chinese, Czech, Russian, Thai, Turkish, Polish, Hungarian, Korean, Greek, Dutch
• 2 USB 2.0 ports: used for saving and for the mouse
• Power supply: 12 VDC – via 220 VAC power adapter (included)
• Consumption: < 15 watts (without hard disk)
• Working temperature: from -10°C to +55°C
• Dimensions (mm): 250x208x46
• Weight: 720 g (without hard disk)

Download

To use the DVR remotely, you need to install the dedicated CMS program on your PC, available from this link CMS Software for PC, or you can install the free XMeye app on your smartphone, downloadable from the App Store for iOS and the Play Store for Android. You can find it by searching manually within the respective stores, or by scanning the QR Code shown at the bottom of the page. During installation, consent to access notifications and the microphone of the mobile device.
