Waterproof Rear-View Camera for Cars

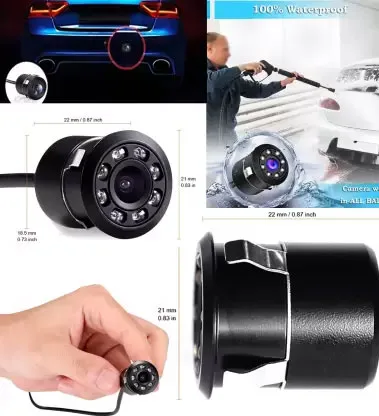

Waterproof, shock-resistant colour mini camera for car rear view

SKU 8100-FR633NEAN 8219671116329Features: Automotive, CVBS signalColour: BlackFormat: BulletMaterial: MetalConnection type: Coaxial cable,

Description

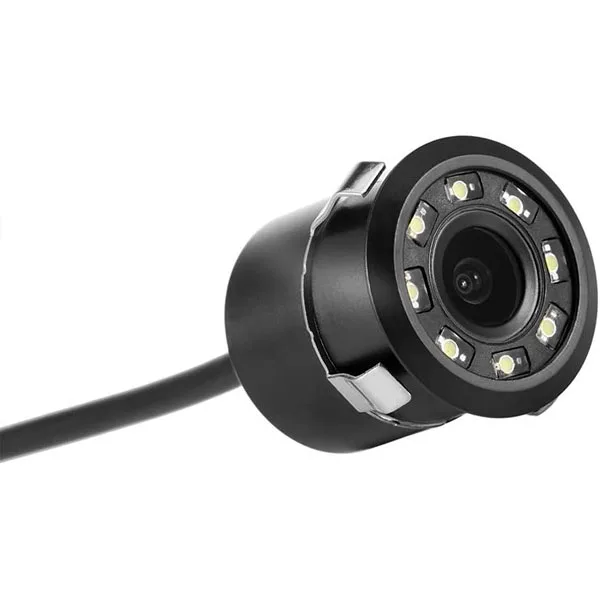

Waterproof and shock-resistant mini color camera for car rear view. The images captured can be viewed on a monitor with composite video input (not included). Two lateral parking guide lines are overlaid on the image. It is powered by the reversing lights and therefore automatically activates when reverse gear is engaged.

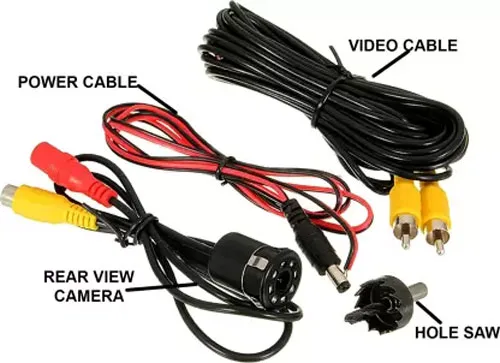

The package includes: the camera, a hole saw to drill a hole with the camera’s diameter, an RCA-RCA video cable, and a power cable.

Note: the connection between the monitor (not included) and the camera is wired.

Technical specifications

  • Weight (grams):
    – package: 175

Technical details

Video system PAL
Image sensor Color CMOS
Viewing angle 120°
Pixel 648x488
Resolution 420 TV lines
Minimum illumination 0 Lux (LEDs active)
Illuminator Yes, 8 white light LEDs
Video output 1 Vpp composite video - 75 ohm
Protection rating IP66
Power supply 9 Vdc to 15 Vdc (12 Vdc recommended)
Consumption max 1.5 watts
Operating temperature -30°C to +70°C
Dimensions (mm) 23x19 (diameter)
camera 26.5
