Waterproof Rear-View Car Camera with Bracket

Waterproof and shockproof rear-view car camera with bracket.

SKU 8100-FR719EAN 8219671102049Features: AutomotiveColour: BlackFormat: Other formatsMaterial: Plastic / metalResolution: 420 TV linesConnection type: Coaxial cable,

Description

Mini waterproof, shock-resistant color camera for car rear view. The images captured can be viewed on a monitor with composite video input (not included). Two parking guide lines are overlaid on the image. The unit is powered by the reversing lights and therefore turns on automatically when reverse gear is engaged.

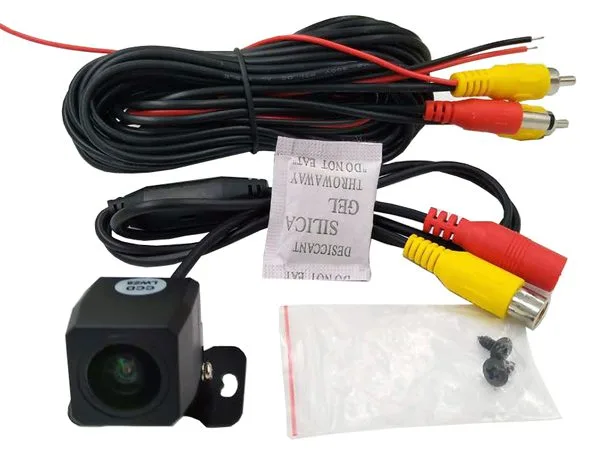

The package includes: the camera, an RCA-RCA video cable, and a power cable.
Note: the connection between the monitor (not included) and the camera is wired.

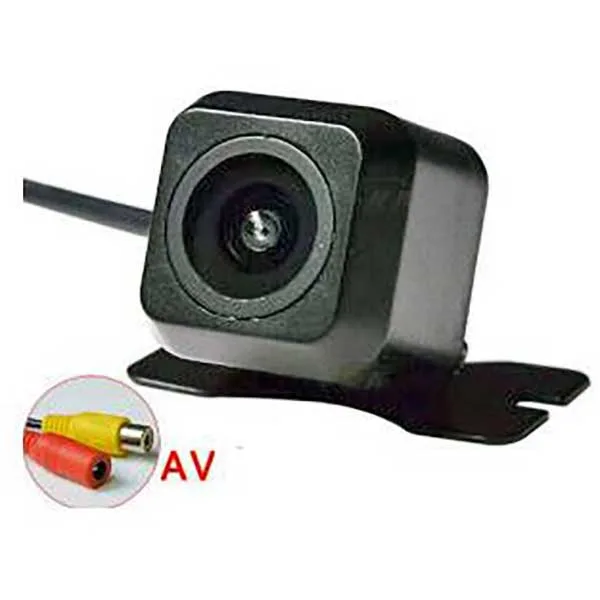

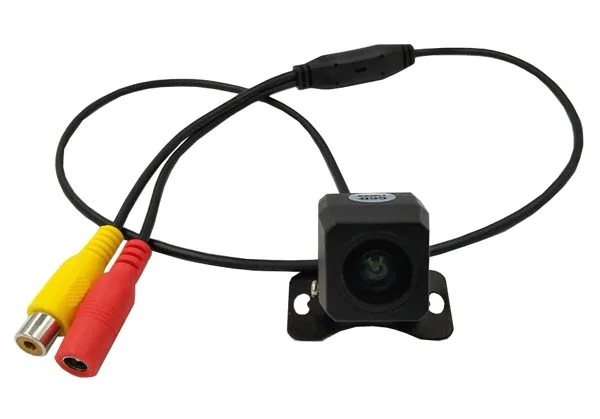

Rear view camera for car with bracket

Technical specifications

  • Weight (grams):
    – camera: 33.5
    – package: 175

Technical details

Video system PAL
Image sensor color CMOS
Lens 2.8 mm
Viewing angle 120°
Pixels 688x488
Resolution 420 TV lines
Video output 1 Vpp composite video - 75 ohm
Protection rating IP67
Power supply 9 VDC to 15 VDC (12 VDC recommended)
Consumption max 1 watt
Operating temperature -30°C to +70°C
camera 25x23x22
package 137x83x57
