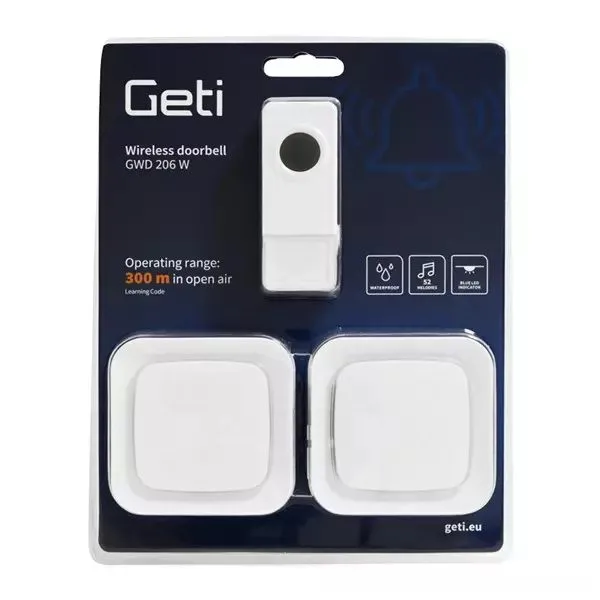

Wireless Doorbell Set with 2 Plug-in 230V Receivers and IP55 Waterproof Push Button

Wireless doorbell with two receivers and an IP55 waterproof push button. Range up to 300m, 52 chimes and adjustable volume. Ideal for the home, the office or industrial premises.

SKU 8240-TP220EAN 8595563723937Item type: Assembled

Description

Make your signalling system more efficient and more versatile with this wireless doorbell set, ideal for homes, offices, industrial units or reception areas.

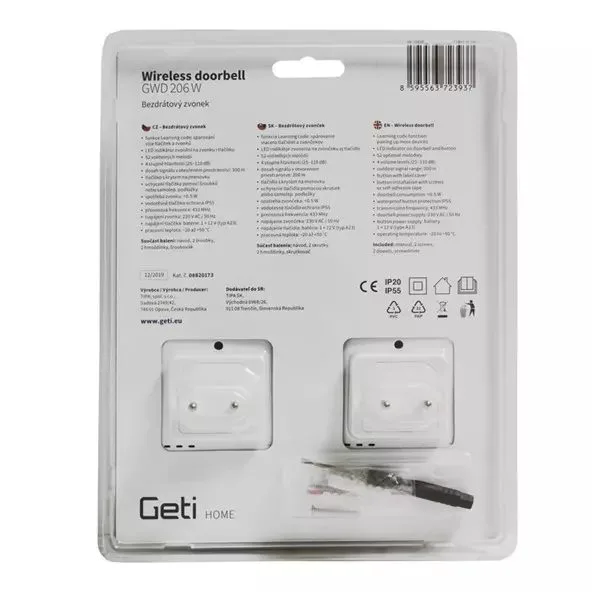

The kit includes two wall-mounted receivers (230V) and a waterproof push button with a label holder, perfect for outdoor use thanks to its IP55 protection rating.

The system works over radio at 433 MHz with a range of up to 300 metres in open ground, giving maximum reliability and flexibility of installation. Customise the chime by choosing from 52 melodies and set the volume to one of the 4 available levels (25-110 dB).
Even in the event of a power cut, the settings are saved automatically. The push button has an LED for visual confirmation that it has been pressed, and runs on a battery included (type A23).

Easy to install, with no wiring needed, it is the perfect solution for anyone looking for convenience, reliability and a modern design.

 SPECIFICATIONS
  • – 52 optional melodies
  • – 4 volume levels (25-110dB)

Technical details

transmission frequency 433 MHz
signal range in open ground 300 m
receiver power consumption less than 0.5 W
waterproof push button IP55
colour white
external power supply 230 V AC / 50 Hz
push button power 1 battery of 12 V (type A23) included
doorbell dimensions 80 x 80 x 40 mm
push button dimensions 35 x 85 x 20 mm
operating temperature -20 to +50 °C
