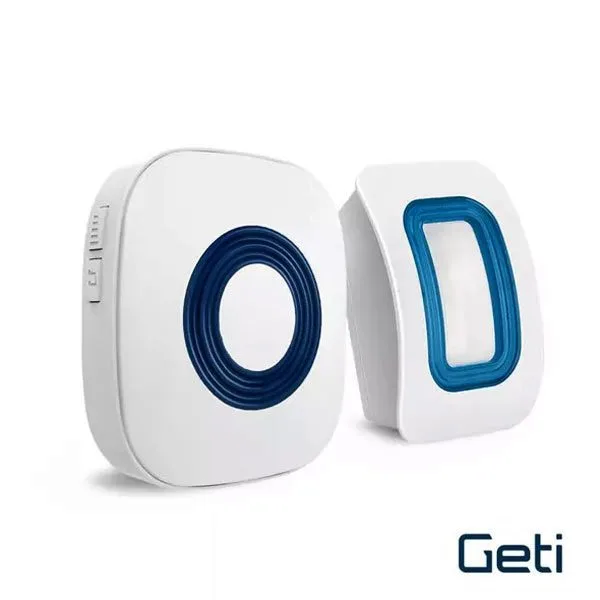

Wireless Alarm with PIR Sensor and Chime, plugs into a 230V socket

Radio alarm with PIR sensor and chime receiver. 58 melodies, 150m range, expandable to 50 devices. Easy to install, ideal for homes and shops.

SKU 8240-TP230EAN 8595563724965,

Description

Protect your space quickly and simply with this wireless alarm system made up of a PIR sensor and a receiver with a built-in chime. The kit detects movement with its passive infrared (PIR) sensor and sends a radio signal to the receiver, which plays one of 58 selectable melodies at 5 adjustable volume levels (25-110 dB).

It is extremely easy to install and needs no technical knowledge: just plug the receiver unit into an ordinary mains socket and put the PIR sensor, powered by batteries or over USB, wherever you want it. Ideal for homes, garages, shops, offices, reception areas and much more.

The system works on 433 MHz with a radio range of up to 150 metres in open ground. The PIR sensor has a detection range of 3–4 metres over a 110° angle, giving good coverage indoors. There is a status LED on both the sensor and the receiver, with a low-battery indicator so nothing catches you out.

Thanks to the learning-code function you can pair up to 50 transmitters and receivers, so the system can be expanded with other compatible Geti GWD devices. The kit includes everything needed for installation: batteries, wall plugs, screws, screwdriver and a manual.

Technical features
  • 58 melodies
  • 5 volume levels
  • LED indicator on the chime and on the PIR sensor
  • Low-battery indication
  • LEARNING CODE: allows pairing with other Geti GWD chimes, sensors, SOS buttons or doorbells.
    – pairing of 50 receivers or transmitters
    – two detection modes:
    a) motion detection at 1-2 second intervals
    b) motion detection at 5-8 second intervals
  • Easy to install and to use
  • Low power consumption
Technical specifications
  • Transmitter unit with PIR sensor:
    – Power supply: 2 x 1.5 volt AAA batteries / 5 V through the micro USB connector
  • Receiver unit with chime:
    58 melodies
    5 volume levels (from 25 to 110dB)

    – Low-battery indication
    – Dimensions (mm): 87x81x39 (220VAC plug not included)
    – Weight: 85 grams

Technical details

Operating frequency 433 MHz
Transmission range 150 metres with no obstacles
PIR sensor detection distance 3-4 metres
PIR sensor detection angle 110°
Dimensions (mm) 80x52x35
Weight 52 grams (batteries not included)
Power supply 230 VAC / 50 Hz
Consumption < 0.5 watt
