10-METER REFLECTIVE BARRIER

Infrared barrier with retroreflective system and a maximum range of 10 meters

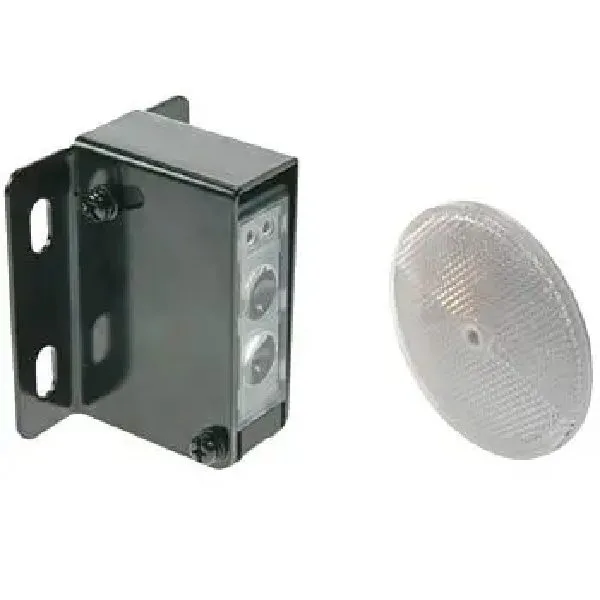

10-METER REFLECTIVE BARRIER - Image 1

SKU 8220-PEM10DEAN 5410329377427

Description

Infrared barrier with retroreflection system and maximum range of 10 meters. The active element, which houses both the transmitter and the receiver, features a switching circuit that allows using a supply voltage, AC or DC, between 12 and 250 volts. The included mounting bracket makes system alignment quick and easy. The range and response time can be adjusted by the user depending on the application. The unit has a relay output with NO and NC contacts. The set includes the reflective element, 1.8 meters of cable, the mounting bracket, and screws.

Technical Specifications

  • Yellow LED: when lit, indicates interruption of the barrier beam

Technical details

Detection method reflection
Maximum range up to 10 m
Response time 5 - 100 ms
Power supply AC / DC 12 ~ 250 V
Transmitting element IR LED
Mounting bracket (screws included)
Cable length 1.8 m
Dimensions 20 x 39 x 63 mm
Consumption ~ 50 mA
Output Relay (contact current 1 A / 250 Vac)
Operating temperature from -10° to +55°C
Ingress protection IP66
