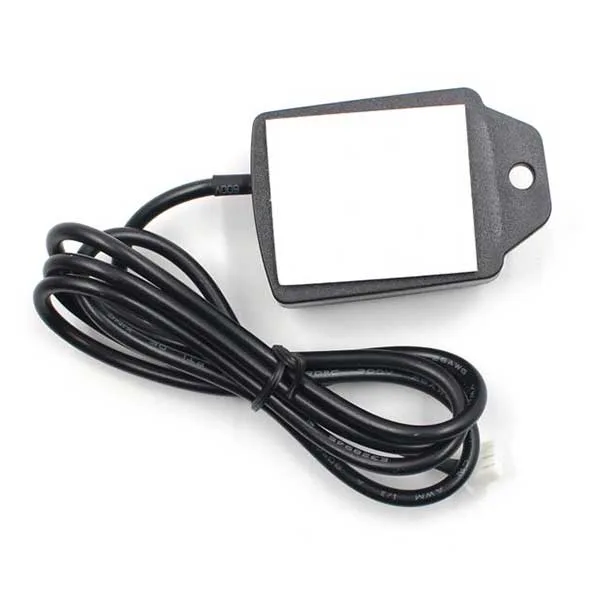

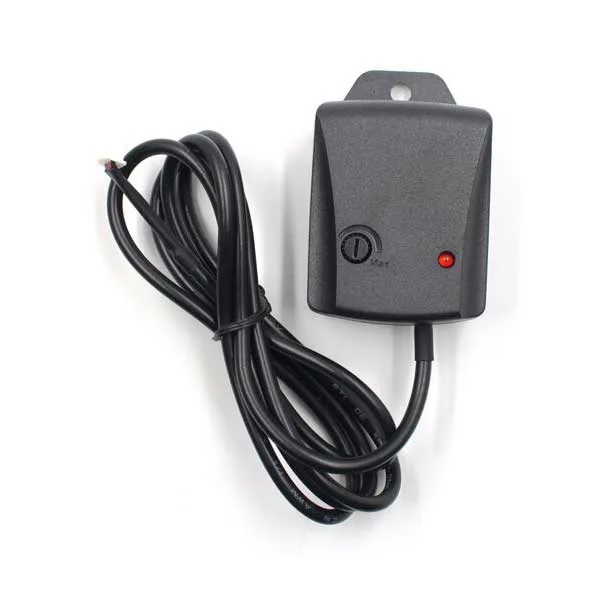

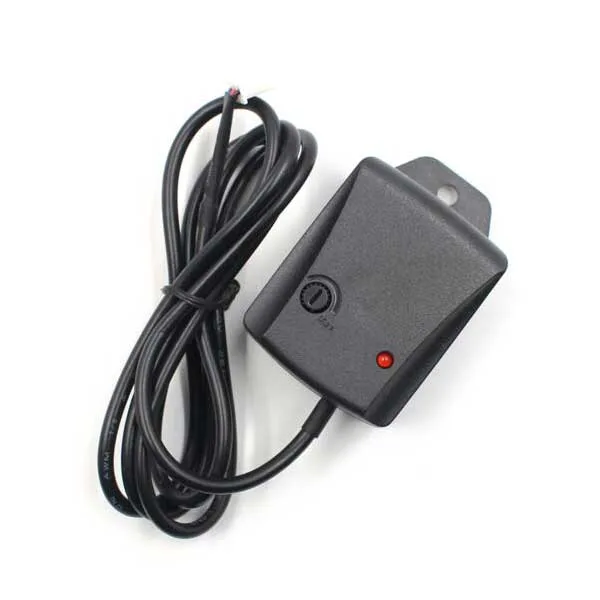

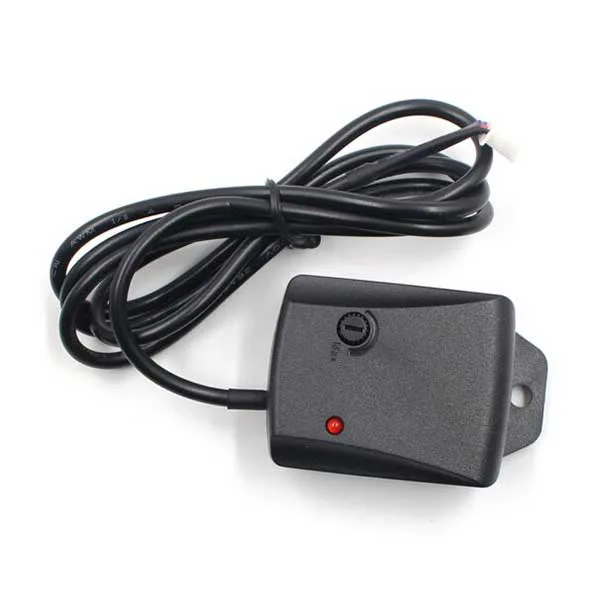

High-sensitivity vibration sensor with signal output and indicator LED 5-15 VDC
Vibration sensor with high sensitivity and a fast response.
SKU 8300-MSENSVIB2EAN 8219671103046Presence & intrusion sensors
Description

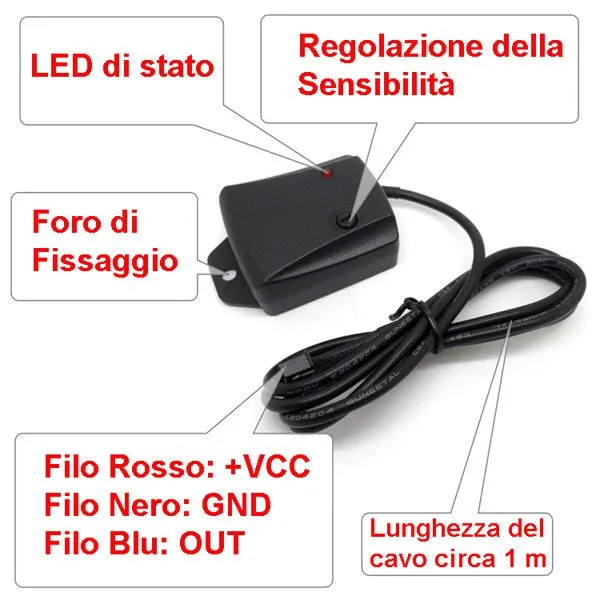

| This vibration sensor is designed to pick up knocks and movement accurately, thanks to its piezoelectric hammer structure and to the LM358 operational amplifier. Sensitivity can be adjusted to suit different applications, so detection stays effective and can be tailored to the job. The sensor puts out a low-level signal when it senses a vibration and has an indicator LED that shows when it has tripped. Its high reliability and stability have made it widely used in car and motorcycle alarm systems. It is easy to combine with microcontrollers (MCUs), wireless transmitter modules and wired alarm systems. Running on a working voltage of 5V to 15V, it is an inexpensive, versatile answer for demanding security applications. | |
|
Technical specifications
|
|
|
|
|
Documentation
|
|
Technical details
| Power supply | from 5 to 15 VDC |
|---|---|
| Current draw | 6-12 mA |
| Alarm indication | red LED |
| Alarm delay | 1 second |
| Cable | 1 metre long, with a 3-pin connector, 2.54 mm pitch |
| Operating temperature | from -20°C to +60°C |
| Dimensions (mm) | 59.5x40x21 |
| Weight | 39 grams |
