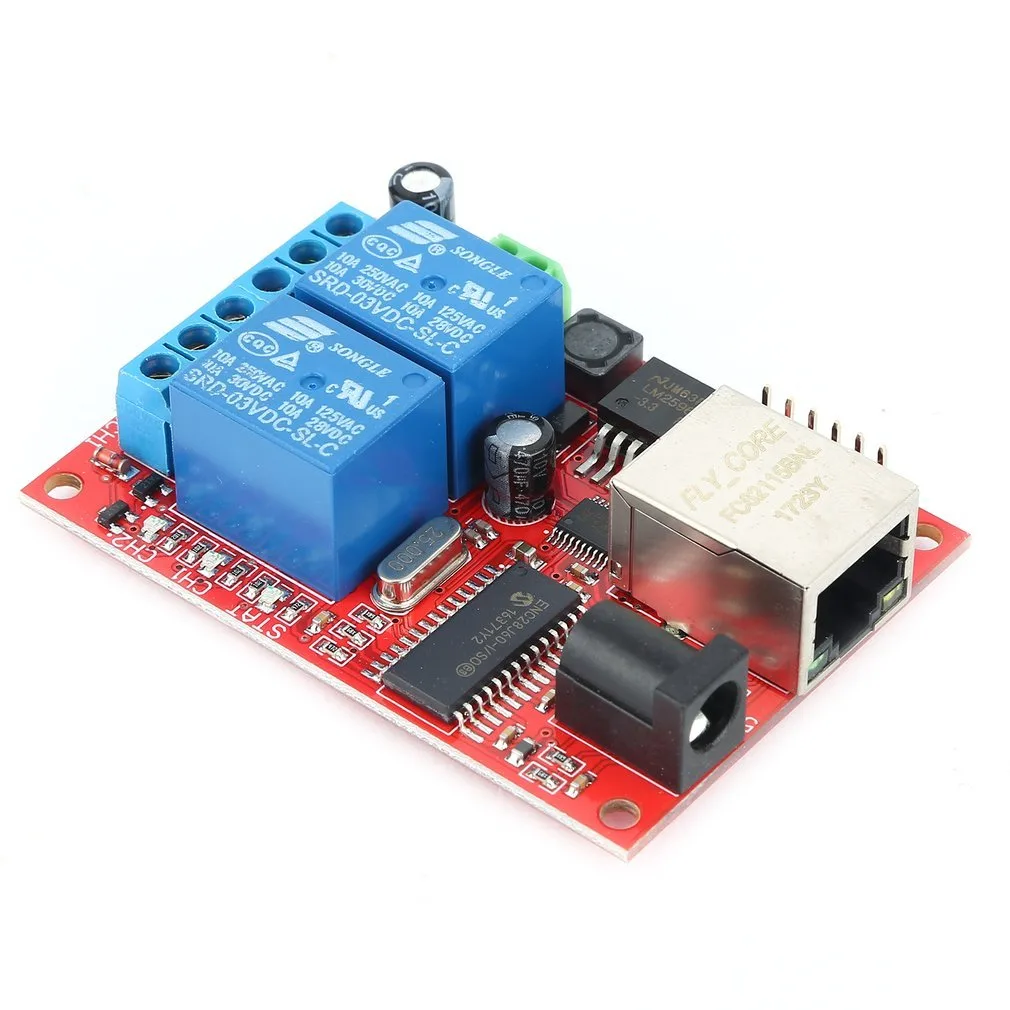

Board with Ethernet interface able to activate or deactivate up to 2 relays. A simple utility is available to connect and configure the board (network parameters, such as the module’s IP address, default gateway, etc.), a small program to activate / deactivate the monostable, bistable and timed relay from 1 to 65.535 seconds.
It has 2 relay outputs N.O. and N.C. (30 VDC 10 A or 250 VAC 10 A) with relative status LED. Power supply
