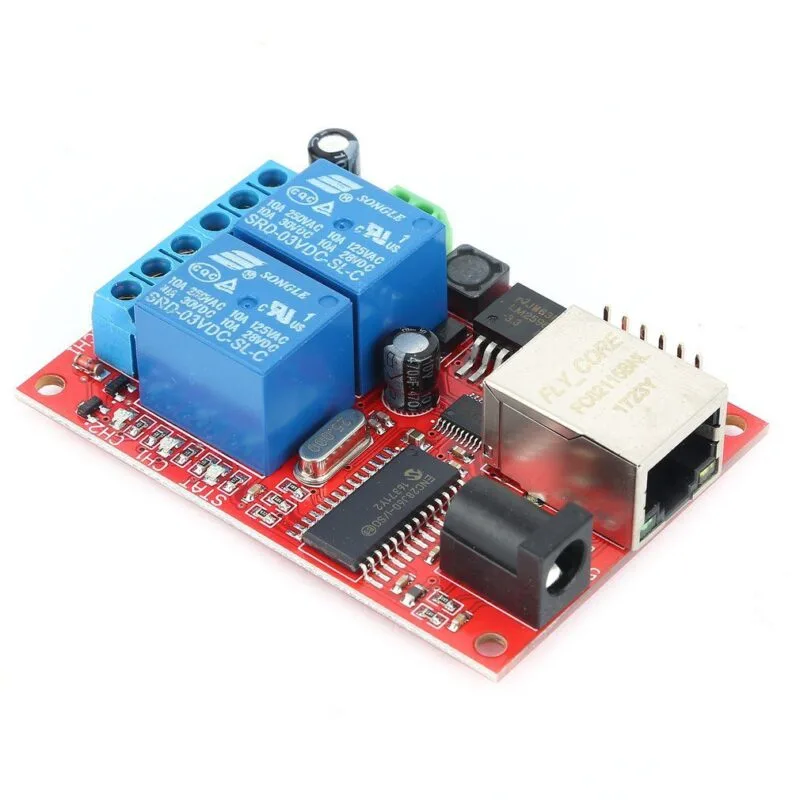

Ethernet Board with 2 Relays

Description

Board with Ethernet interface capable of switching up to 2 relays. A simple utility is available to connect and configure the board (network parameters, such as the module’s IP address, default gateway, etc.), and a small program to switch the relays in monostable, bistable, and timed modes from 1 to 65,535 seconds.

It features 2 relay outputs, N.O. and N.C. (30 VDC 10 A or 250 VAC 10 A) with corresponding status LEDs. Power supply: 9 to 24 VDC, dimensions (mm): 70 (length) x 50 (width) x 19 (height).

The board is supplied already assembled and tested.

Note: the board does not have a built-in web server, so it cannot be managed via web without external programs.

Documentation and useful links

• ETH2RELBOARD
