Programmable BASIC controller with Wi-Fi

Description

The DS1101GD is a compact programmable BASIC controller, based on the high-performance 88 MHz T1000 ASIC microcontroller, particularly suited for serial control and serial-over-IP applications. It features a single DB9M connector that houses a 3.5-channel RS232 port, eight status LEDs, a buzzer, and a Wi-Fi interface.

Another feature of the DS1101GD is that its software controls power on pin 9 of the DB9 connector, allowing a connected serial device to be powered directly. The DS1101GD itself can be powered through pin 9. It has eight status LEDs on the top of the device and a buzzer. The device comes with a preloaded, fully functional serial-over-IP application, a DIN rail guide, and a wall-mounting plate. Dimensions: 90x48x25 mm.

The new DS110X family devices

Device Name	DS1100	DS1101	DS1102
Serial Port	RS232	3.5-channel RS232	3-channel RS232/422/485
Power in/out on DB9	in only	in/out	No
Wi-Fi*	No	optional	optional
OLED Display	No	optional	optional
PoE*	optional	optional	optional
Buzzer	No	Yes	Yes
* Wi-Fi and PoE options are mutually exclusive and cannot be installed simultaneously.

Programmable		Ready to Go
Rich in features, easy to learn, the Tibbo BASIC language opens a world of programming possibilities. Control serial devices. Collect, store, and manage data. Communicate with AggreGate Server.		Use the preloaded, fully functional serial-over-IP application or download one of the ready-to-use apps for free.
Value		Performance
The DS1100 is a compact entry-level programmable BASIC controller with a single-channel RS232 port.		The DS1101 and DS1102 are very powerful and versatile devices. They can be ordered with optional features such as Wi-Fi 802.11b/g interface, Power-over-Ethernet, and various serial port configurations.
DIN Rail		Wall Mount
DIN rail mounting bracket included.		Wall mounting bracket included.

Serial	Wi-Fi	Display (OPTIONAL) Not included in this version	PoE
The DS1100 has RS232, the DS1101 has 3.5-channel RS232, and the DS1102 has a universal RS232/422/485 port.	Equip your DS1101 or DS1102 with the optional GA1000 Wi-Fi module. Supports the 802.11b/g standard and WPA and WPA2 security protocols.	The 96×32 OLED display is very useful; it allows you to display messages, icons, status information, etc. For inspiration, see how the display is used in the serial-over-IP application.	Power your DS110x directly through the Ethernet cable! Compatible with a wide range of PoE hubs and “power inserters”. Note: PoE and Wi-Fi are mutually exclusive.

TIBBO DS1101GD Technical Specifications

• 3.5-channel RS232 port on DB9M connector:
  – Baud rates up to 921,600 bps
  – TX, RX, RTS, CTS, DTR, DSR, and DCD lines
  – None/even/odd/mark/space parity modes
  – 7/8 bits/character modes
  – Optional RTS/CTS flow control
  – 12 V input available on pin 9 of the DB9 connector
• Eight status LEDs on the top of the device:
  – Green and red status LEDs
  – Yellow Ethernet status LED
  – 5 blue LEDs (used for Wi-Fi signal strength indication)
• Firmware: upgradeable via serial port or network
• Certifications: CE and FCC
• Included Accessories: DIN rail mounting bracket and wall mounting bracket

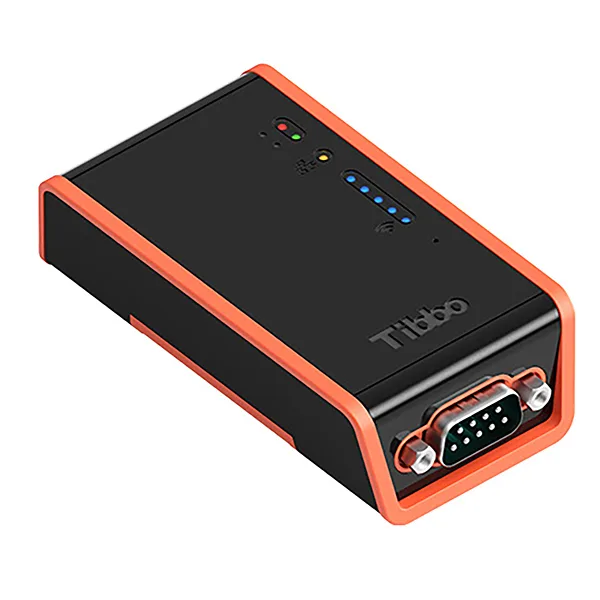

DS1101GD with DIN rail and wall mounting bracket
