Wi-Fi switch with 4 relays – Alexa/Google/Tuya

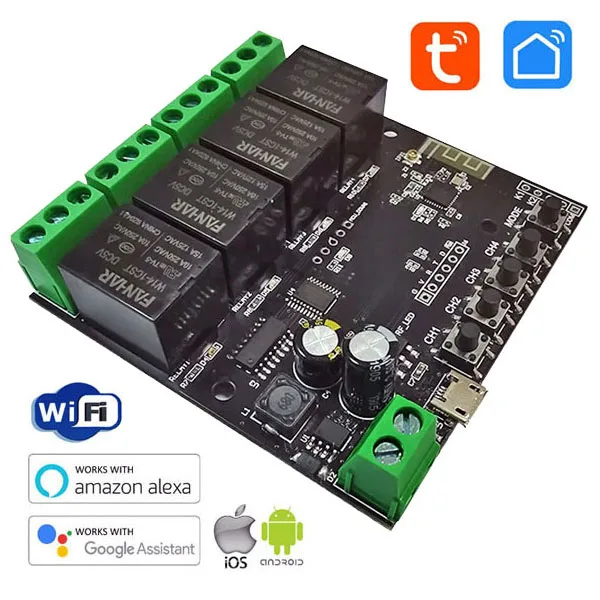

Compact module with a Wi-Fi interface based on the ESP8266 and fitted with 4 relays.
SKU 2846-RL04WIFIItem type: AssembledEthernet & Wi-Fi
Description

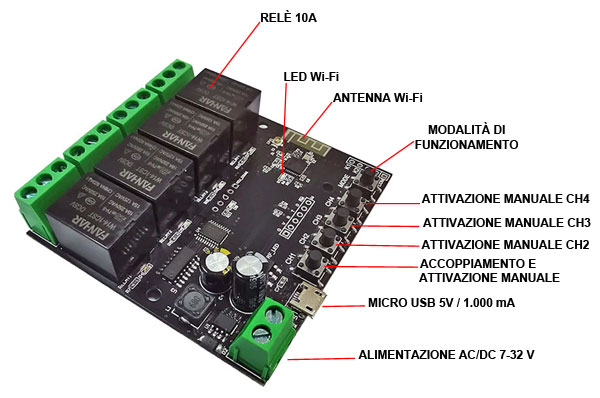

| Compact module with a Wi-Fi interface based on the ESP8285 and fitted with 4 relays. It can be controlled from the “Tuya Smart” or “Smart Life” smartphone apps, or used in applications with Amazon Alexa and Google Assistant. The 4 relay outputs can work in monostable, ON/OFF, countdown or timer mode (time and day of the week) and can switch up to 230 VAC with a maximum current load of 10 A. It has status LEDs for Wi-Fi and power, buttons for operating the relays by hand and a button for the operating mode, screw terminals for the relay contacts and the power supply. It can be powered at 5 volts through the micro USB 5V connector, or from an AC/DC power supply with an output of 7 to 32 volts. Ideal for the smart home, IoT, opening garage doors, entrance gates and so on. |
|
Technical specifications
|
 |
|
Technical details
| Wireless standard | 2.4 GHz, 802.11 b/g/n |
|---|---|
| contact rating | 10 A 250 VAC - 10 A 30 VDC |
| Buttons | 5 (manual control, operating mode and pairing) |
| through the screw terminal | 7 to 32V AC/DC |
| through micro USB | 5VDC / 1,000 mA |
| Consumption | < 1W (80 mA in standby) |
| Operating temperature | -10°C to +60°C |
| Size (mm) | 74x73x18 |
| Weight | 70 grams |
