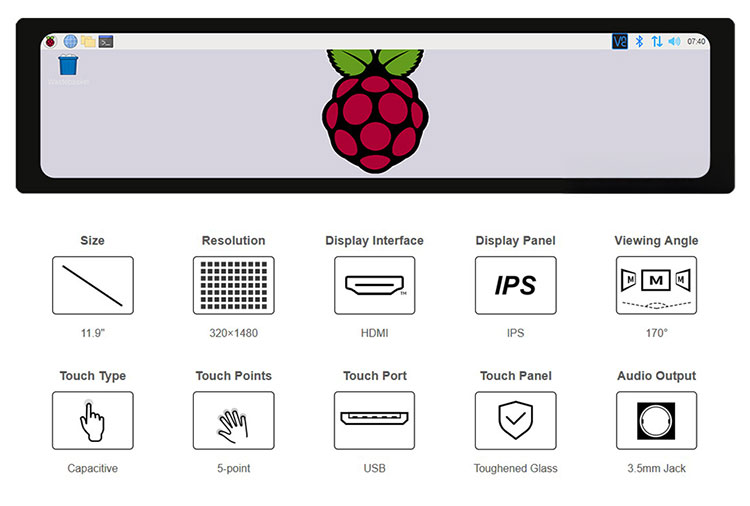

11.9″ capacitive touch screen display with audio output – 320 x 1480 pixels

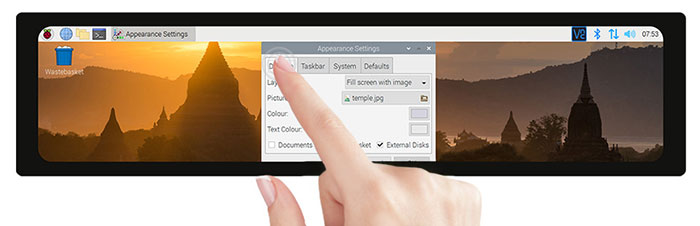

The capacitive touch supports up to 5 simultaneous points, with the actual behaviour depending on the operating system in use. Video is carried over the HDMI connection, while touch data travels over the USB port (USB-A to Micro-B).

Natively compatible with the Raspberry Pi (including models 5, 4B, 3B, 3A, Zero, Zero W and Zero 2 W), NVIDIA Jetson Nano and Windows systems (7/8/10/11), with no drivers to install: the display is recognised automatically by the operating system.

The default setting is portrait orientation, which can be changed in software for landscape use. There is also an audio output on a 3.5 mm jack.

Ideal for embedded applications, HMI, digital signage, prototyping and user interfaces on ARM and x86 systems.

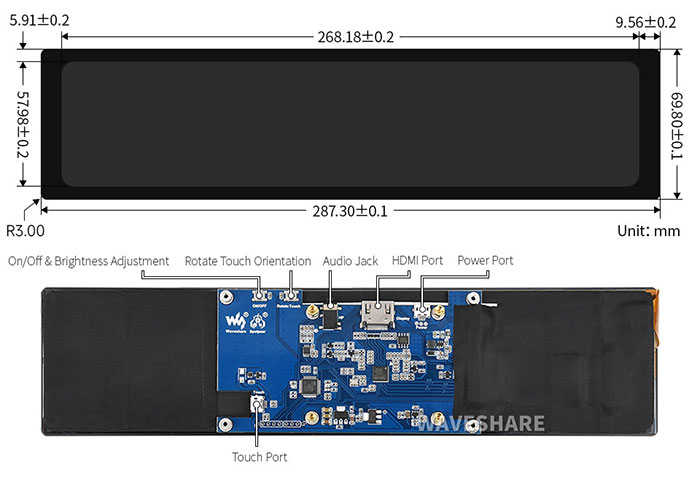

• Size: 282.66 × 114.16 × 12.35 mm
• Weight: about 600 g

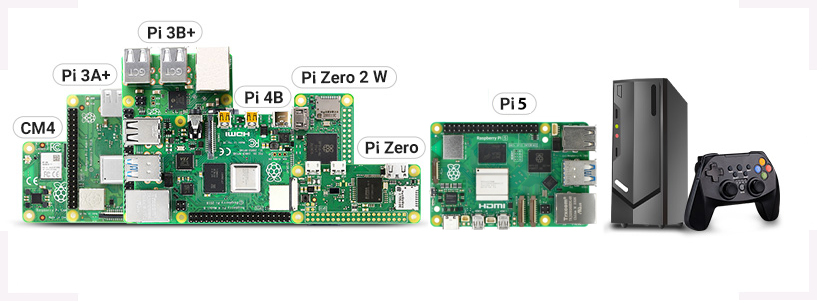

• Compatible with every Raspberry Pi board
  Connects directly to: Raspberry Pi 5, Pi 4B / 3B + / 3A + / 3B / 2B / 1B + / 1A +
  Driver supplied: supports Raspbian / Ubuntu / Kali / Retropie
• PC
  Compatible with Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, no drivers needed.

• Game Console
  Compatible with Xbox 360, PS4, PS5, Switch…

• • Supports up to 5 touch points, depending on the operating system.
  • Tempered glass panel with a hardness of up to 6H.

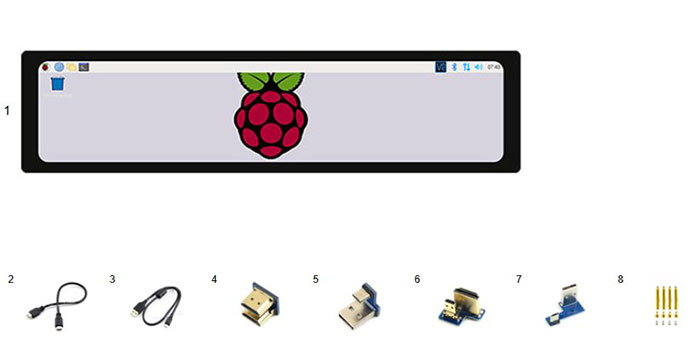

1. 11.9 inch HDMI display x1
2. HDMI cable x1
3. USB-A to Micro-B cable x1
4. HDMI adapter (type B) x1
5. USB adapter (type B) x1
6. HDMI adapter (type C) x1
7. USB adapter (type C) x1
8. Pack of screws x1

• Wiki page
