Raspberry Pi 4 Model B with 8 GB of memory

Raspberry Pi 4 Model B is the fourth generation produced by the Raspberry Pi Foundation.  Not only is it suitable for learning to program, develop and play, but it is also perfect for IoT projects

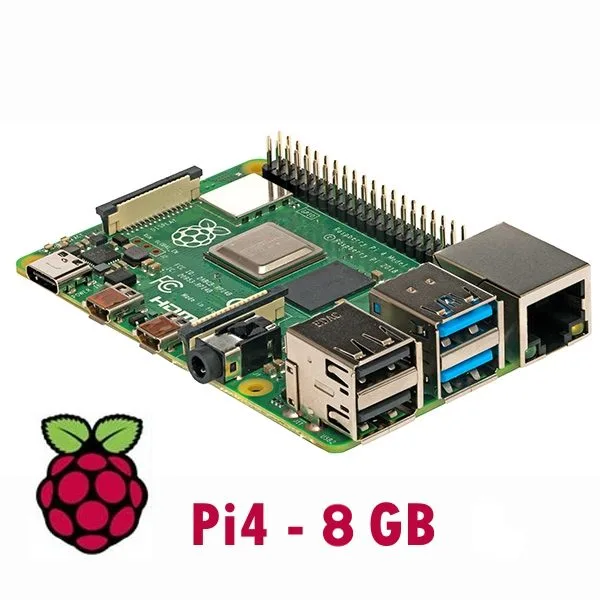

Raspberry Pi 4 Model B with 8 GB of memory - Image 1

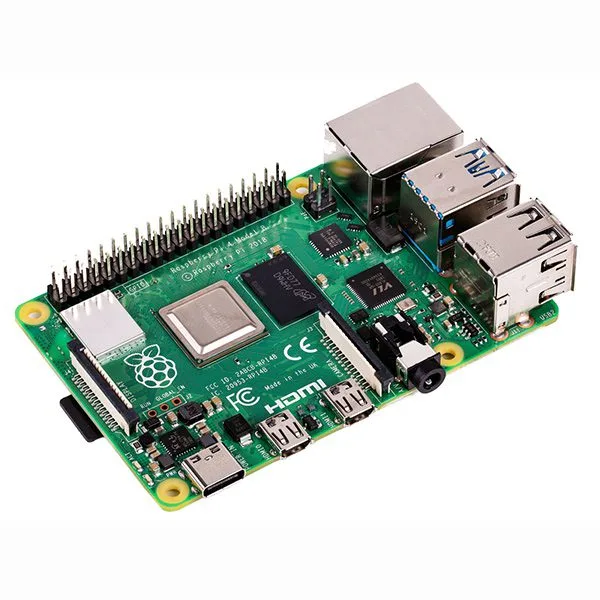

Raspberry Pi 4 Model B with 8 GB of memory - Image 3

SKU 7310-RPI4-8GBEAN 8219671112550Item type: Assembled, Board

Description

Raspberry Pi 4 Model B is the fourth generation produced by the Raspberry Pi Foundation.  Not only is it suitable for learning to program, develop and play, but it is also perfect for IoT projects. Raspberry Pi 4 delivers more processing power, more memory and more connectivity, while retaining full compatibility with projects built with previous versions. It’s equipped with a 1.5GHz 64-bit quad-core ARM Cortex-A72 CPU, capable of offering performance comparable to entry-level x86 PC systems. It provides dual-display support for resolutions up to 4K via a pair of micro-HDMI ports, 8 GB of RAM, video decoding hardware up to 4Kp60, dual-band 2.4 / 5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE (Power over Ethernet) support via a dedicated PoE HAT add-on.
Technical specifications
  • Full compatibility with previous versions of Raspberry Pi
  • Dual monitor support, with resolution up to 4K
  • 4Kp60 hardware decode of HEVC video
  • Networking: 2.4 GHz and 5 GHz 802.11b/g/n/ac wireless LAN
  • Ports:
    – 2 × micro-HDMI 2.0,
    – 3.5 mm analogue audio-video jack
    – 2 × USB 2.0
    – 2 × USB 3.0
    – Gigabit Ethernet
    – Camera Serial Interface (CSI)
    – Display Serial Interface (DSI)
  • Dimensions: 88 mm × 58 mm × 19.5 mm, 46 g
What is Raspberry Pi?
A Raspberry Pi is a compact computer board that offers endless possibilities. From the very beginning, Raspberry Pi was designed to be easy to use and easy to adapt to whatever you want to do with it.
Just connect a TV or monitor, a keyboard, a mouse and a power supply, and you’re ready to go. One of the strengths of Raspberry Pi is that it suits almost every age group. Whether it’s explaining programming to children, or being used by engineers to build complex computer-controlled systems, anyone can use one.
There is a wide range of “HATs” (Hardware Attached on Top) and other accessories that can be connected to the Raspberry Pi to add specific features such as:
  • Cameras
  • LCD displays
  • Motor drivers
  • Sensors
  • GPS
  • Mobile data connectivity
  • Digital TV decoders

Raspberry Pi is one of the best-selling computers of all time, with 25 million units sold so far. (Feb 2019).
Documentation and useful links in English

Technical details

Processore Broadcom BCM2711B0 quad-core A72 (ARMv8-A) 64-bit @ 1.5GHz
GPU Broadcom VideoCore VI, OpenGL ES 3.x support
Networking 2.4 GHz and 5 GHz 802.11b/g/n/ac wireless LAN
RAM 1GB, 2GB, 4GB, 8GB LPDDR4 SDRAM (depending on model)
Bluetooth Bluetooth 5.0, Bluetooth Low Energy (BLE)
GPIO 40-pin GPIO header, populated
Storage microSD (minimum 8GB)
Dimensions 88 mm × 58 mm × 19.5 mm, 46 g
Input power 5 V DC via USB-C connector (min 3 A)
Operating temperature from 0°C to +50°C
