Power Bank for Raspberry Pi
Compact HAT for Raspberry Pi with power bank function
SKU 2850-LIBATHATEAN 8219671116725Item type: Assembled, Shields & add-onsRaspberry Pi
Description

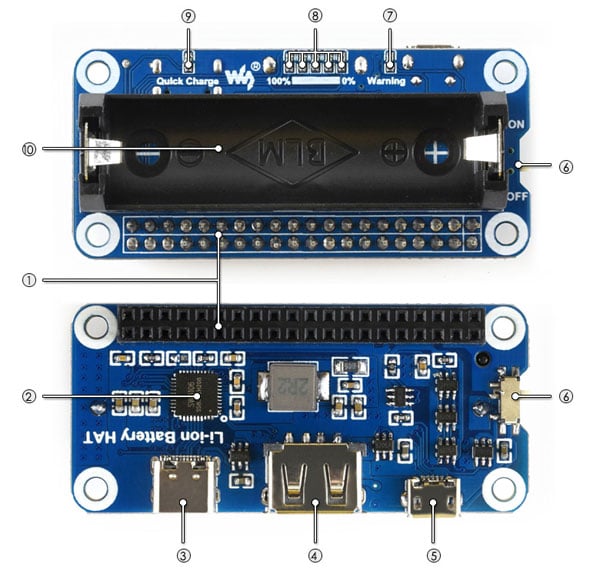

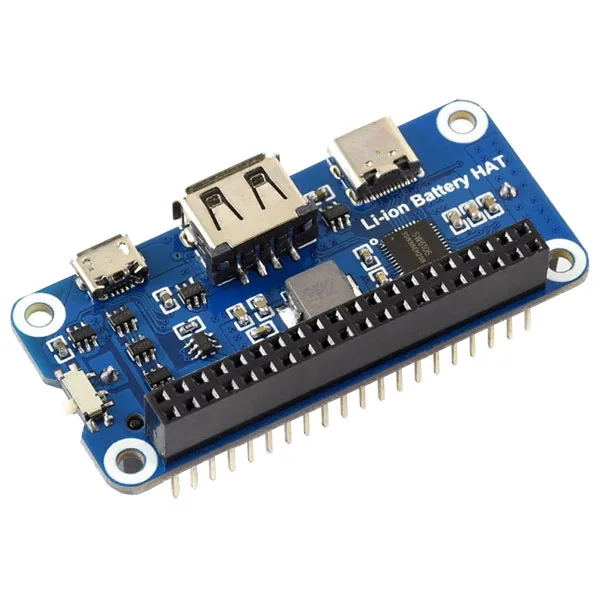

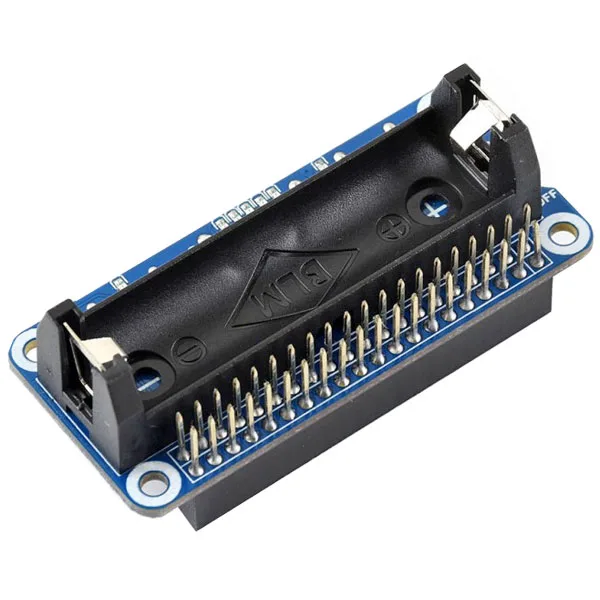

| Compact HAT for Raspberry Pi with power bank function. Based on the SW6106 fast-charging chip, it uses a 14500-type Li-Ion battery (not included, see related products) to power a Raspberry Pi or any other device that runs on 5 volts. It has a mini USB and a USB type C connector for charging the battery, a USB connector for the 5 volt output, an on/off switch, reverse polarity protection for the Li-Ion battery, overcharge/over-discharge protection, overcurrent protection and short-circuit protection. There are also status LEDs for: fast charging, a warning for a battery inserted with reversed polarity, and the battery charge level. This module can be used as a universal mini power bank, and also works with other 5 volt devices.
N.B. It is not a UPS. |

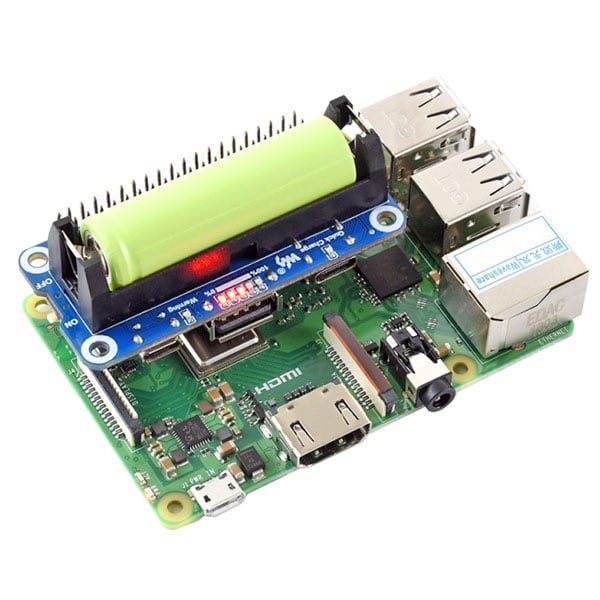

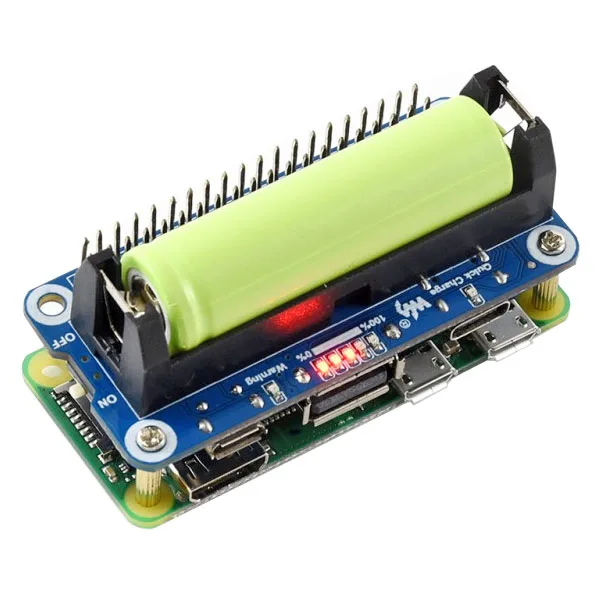

LIBATHAT with Raspberry Pi (not included) |
| Details |
 |
|
| Documentation and useful links |
Technical details
| Power supply | Li-Ion 3.7 volt (4.2 volt when fully charged) battery, type 14500 |
|---|---|
| Output voltage | 5 volt |
| Compatibility | Raspberry Pi 3, 3B+, 4B, Zero and Zero W |
| Dimensions (mm) | 65x30x25 |
| Mounting holes | 3 mm |
| Weight | 18 grams |
| Raspberry Pi GPIO connector | for connecting to Raspberry Pi |
| Power management chip | SW6106 |
| USB Type-C connector | fast battery charging |
| USB type A connector | 5 volt output |
| Micro USB connector | battery charging |
| Battery charge level indicator | 5 LEDs to show the battery's charge status |
| Fast charge indicator | lit during fast charging |
