AMG8833 Thermal Image Sensor

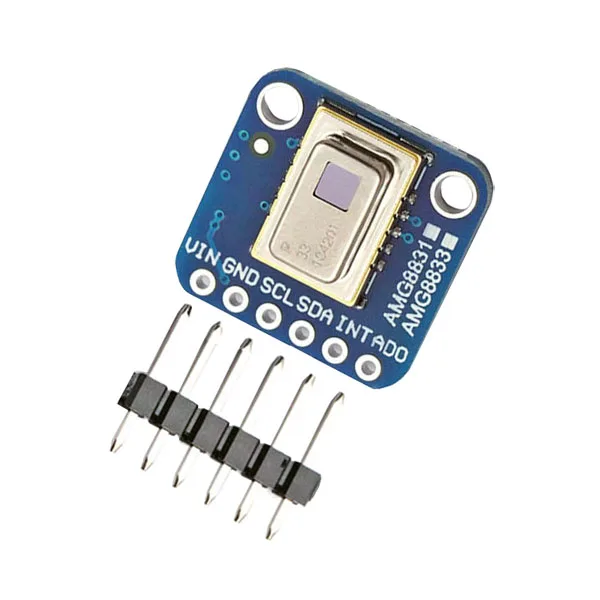

Breakout board based on the Panasonic AMG8833 sensor
SKU 2846-AMG8833MODULEEAN 8219671118910Item type: AssembledSensors, Sensors
Description
| Breakout board based on the Panasonic AMG8833 sensor. It captures and creates an image of a body or an object using the infrared radiation it emits. Used with Raspberry Pi, Arduino or any other microcontroller, it is able to detect the heat of an object or a human body at a max. distance of 7 metres. It can measure temperatures from 0°C to +80°C (32°F to 176°F) with an accuracy of about 2.5°C (4.5°F), has a detection angle of 60 degrees, a max. frame rate of 10 Hz, and a configurable interrupt pin that can be triggered when a single pixel goes above or below the set threshold. |
| Documentation and useful links |
Technical details
| Temperature range | from 0°C to +80°C (32°F to 176°F) |
|---|---|
| Accuracy | about 2.5°C (4.5°F) |
| Detection angle | 60° (horizontal, vertical) |
| Interface | I2C |
| Frame rate | max. 10 Hz |
| Power supply | from 3 VDC to 5 VDC |
| Current consumption | max. 4.5 mA |
| Operating temperature | from 0°C to +80°C |
| Dimensions (mm) | 17.6x17.1x7 |
| Weight | 2 grams |
