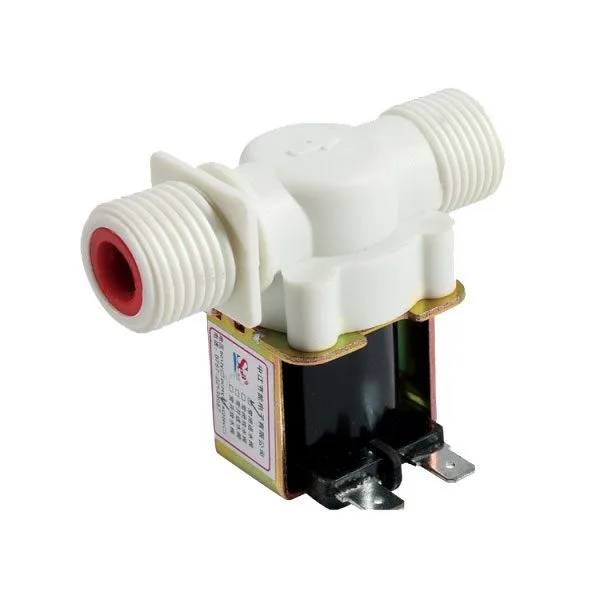

12 Vdc 1/2 inch Solenoid Valve
Solenoid valve for shutting off water flow
SKU 8300-YXVMA422Electronic components
Description
| Solenoid valve (normally closed) suitable for shutting off water flow (do not use with other liquids). It has a plastic body, a 12 Vdc coil and 1/2 inch threaded fittings. Working pressure is 0.02 to 0.8 MPa (0.2 to 8 bar), which gives a flow of 3 litres/minute at 0.02Mpa, 12 litres/minute at 0.1Mpa, 35 litres/minute at 0.8Mpa.
N.B. this is not a gravity-feed solenoid, which means you will need enough water pressure to open the valve fully. |
|
|
Technical details
| Supply | 12 VDC |
|---|---|
| Current draw | about 350 mA |
| Inlet-outlet pipe diameter | 1/2 inch |
| Working pressure | 0.02 to 0.8 MPa (0.2 to 8 bar) |
| closing | 0.3 seconds |
| opening | 0.15 seconds |
| Connection | 6.3 mm male spade terminal |
| Working temperature | +1°C to +60°C |
| Weight | 108 grams |
