12 VDC Battery Protection Module

This module protects the battery against excessive discharge by disconnecting the load at a set voltage (10.5 VDC by default), adjusted with the trimmer it carries (from 9 up to the battery voltage)

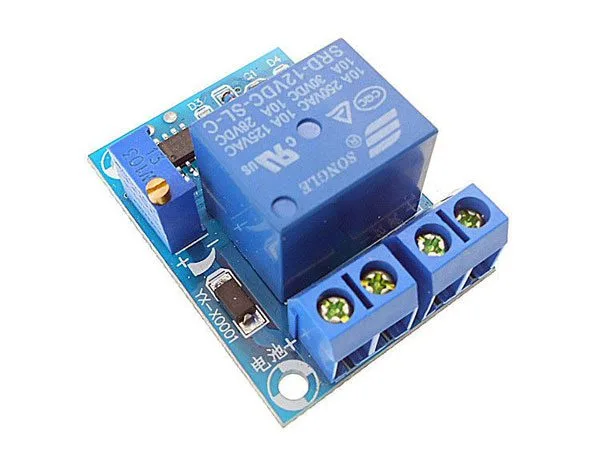

12 VDC Battery Protection Module - Image 1

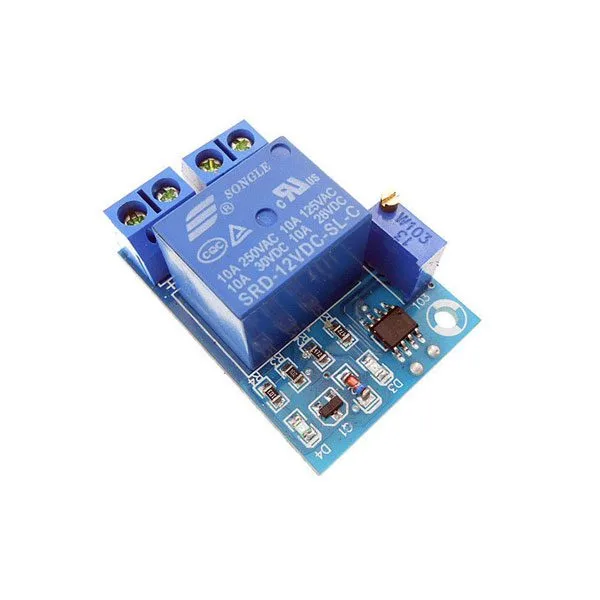

12 VDC Battery Protection Module - Image 3

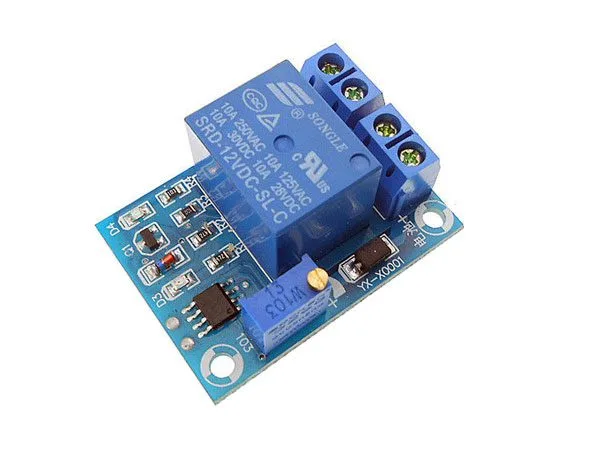

12 VDC Battery Protection Module - Image 4

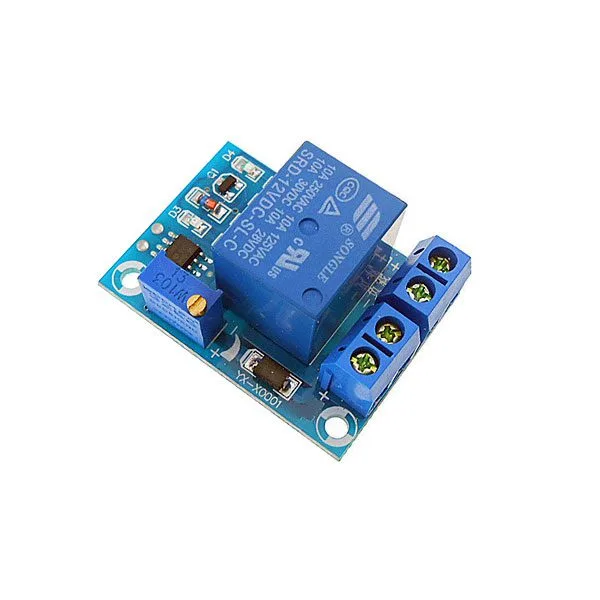

12 VDC Battery Protection Module - Image 5

SKU 2846-12VPROBATTEAN 8219671106795Output voltage: 12 VdcItem type: Assembled,

Description

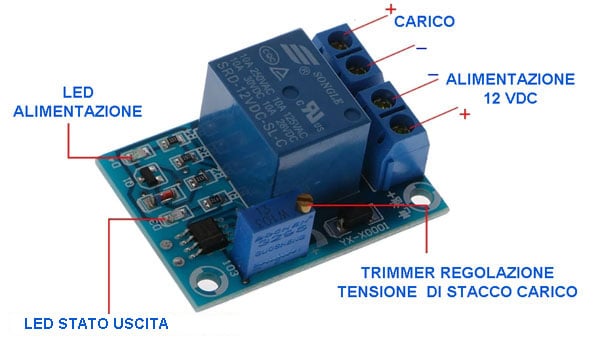

This module protects the battery against excessive discharge by disconnecting the load at a set voltage (10.5 VDC by default), adjusted with the trimmer it carries (from 9 up to the battery voltage). It has status LEDs for the load output and for the supply, screw terminals for supply and load, and a relay output with contacts rated 12 VDC 10 A (resistive load only). Power supply: 12 VDC from the battery (Max. 15 VDC), dimensions (mm): 40x29x19.
