Central Locking Actuator – five-wire

Five-wire electric actuator suited to building central locking systems for cars

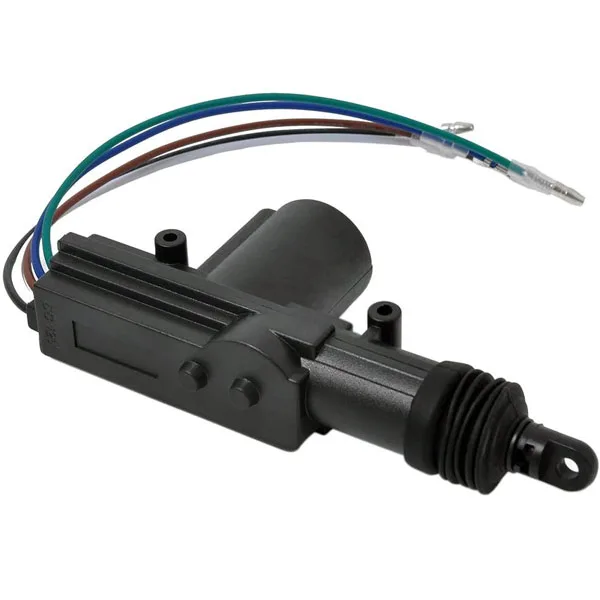

Central Locking Actuator - five-wire - Image 1
Central Locking Actuator - five-wire - Image 3

SKU 8220-AM900-5EAN 8219671118569Item type: Assembled

Description

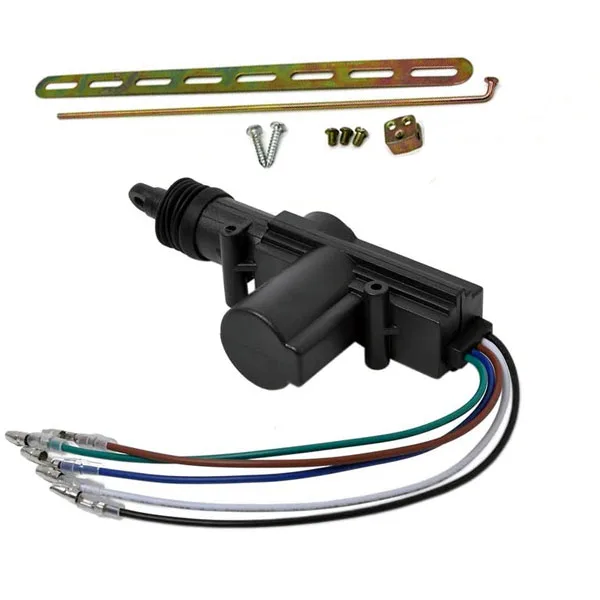

Five-wire electric actuator for central locking systems in cars. It manages the locking mechanism of a single door. Supplied with bracket, screws, and mounting accessories. Dimensions (mm): 120x60x28.

Technical specifications

  • Dimensions (mm): 140x60x30

Technical details

Dimensions (mm) 120x60x28
Power supply 12 VDC
Current draw max. 2A
Push/pull force 4 kg
Service life 100,000 cycles
Wire length approx. 160 mm
Black wire Micro switch common
White wire Micro switch normally open
Brown wire Micro switch normally closed
Green wire Negative
Blue wire Positive
Weight approx. 90 g
