12V toggle power switch with LED

12V toggle power switch with LED indicator
12V toggle power switch with LED - Image 1
12V toggle power switch with LED - Image 3
12V toggle power switch with LED - Image 4

SKU 1606-TSWITCH12VEAN 8219671117067Colour: SilverContact configuration: DPDTHole size: 12 mmLighting: NoneSwitch action: ON-OFF-ONItem type: Buttons & switches

Description

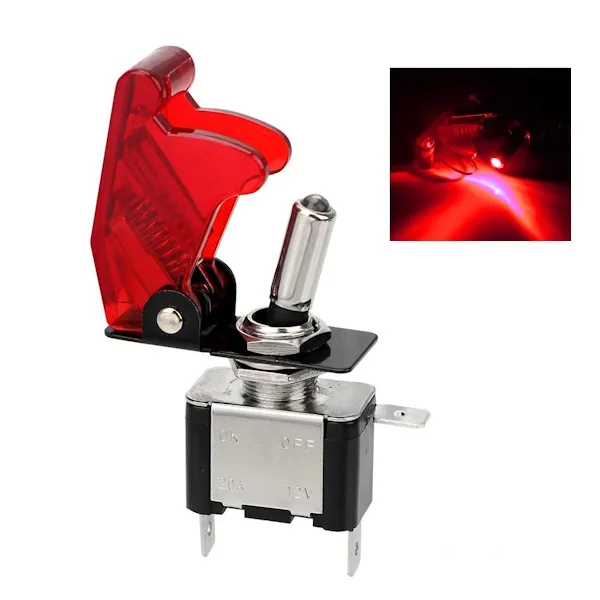

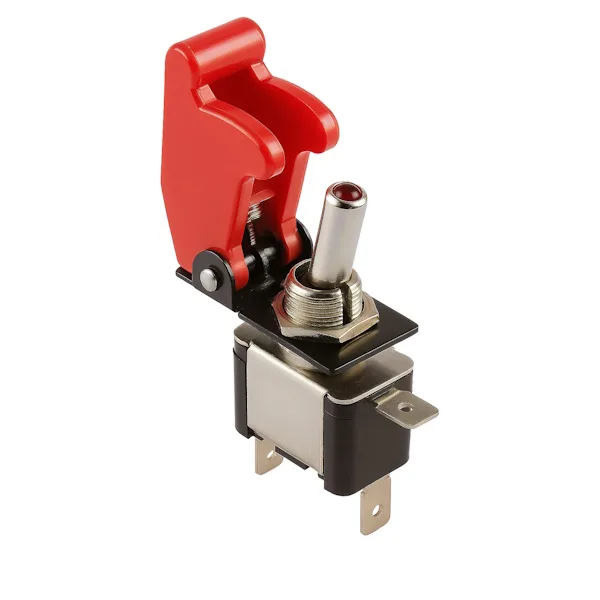

ON-OFF two-position (SPST) toggle power switch for use in low-voltage circuits. With a metal body and solderable faston terminals, the switch can handle loads with a maximum draw of 20 A at 12 V. Red LED indicator lights up when in the ON position; it can also be paired with the plastic protective cover, available separately.

● Switch: ON-OFF 2-Position 3-Pin Toggle
● Switching: SPST
● Max operating ratings: 20A / 12VDC
● Maximum Contact Resistance: 50mΩ
● Insulation Resistance: 1000MΩ 500VDC
● Service life: Over 10,000 switching cycles
● Operating Temperature: -25 ~ 85°C
