13.56MHz RFID read-write module

MIFARE-type RFID reader/writer module

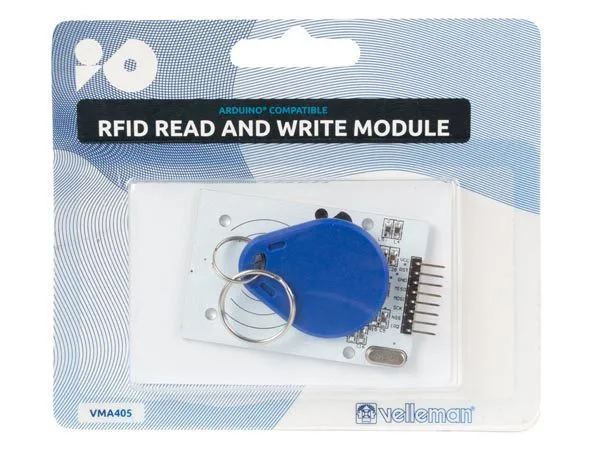

13.56MHz RFID read-write module - Image 1

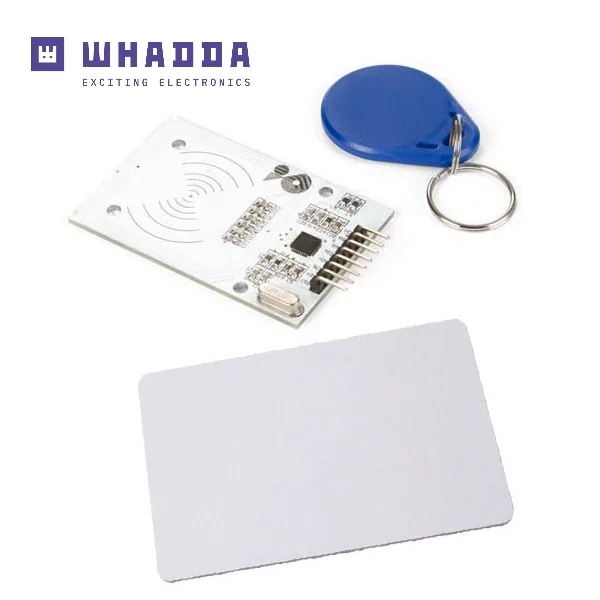

13.56MHz RFID read-write module - Image 3

SKU 8220-VMA405EAN 5410329657352Item type: Assembled

Description

MIFARE-type RFID reader/writer module. The package includes an RFID keyfob, an RFID card and a reader/writer module. Compatible with Arduino.
Technical specifications
  • Includes: 1 reader/writer module, an RFID card and an RFID keyfob
Documentation and useful links

Technical details

Operating voltage 3.3 VDC
Operating current between 13 and 26 mA
Standby current < 80 uA
Peak current < 30 mA
Operating frequency 13.56 MHz
Supported cards Mifare
Interface / protocol SPI
Controller chip MFRC522
Data rate Max. 10 Mbit / s
Dimensions (mm) 66x40x7
