RFID NFC 13.56 MHz Read-Write Module

MIFARE-type RFID reader/writer module, compatible with Arduino, Fishino, etc.

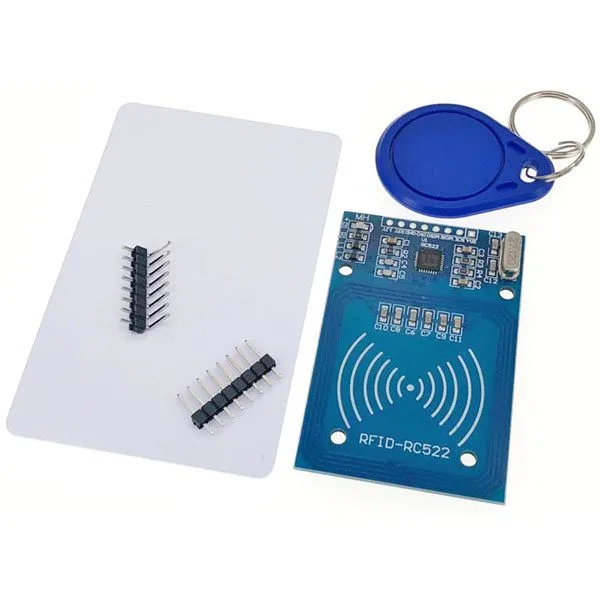

RFID NFC 13.56 MHz Read-Write Module - Image 1

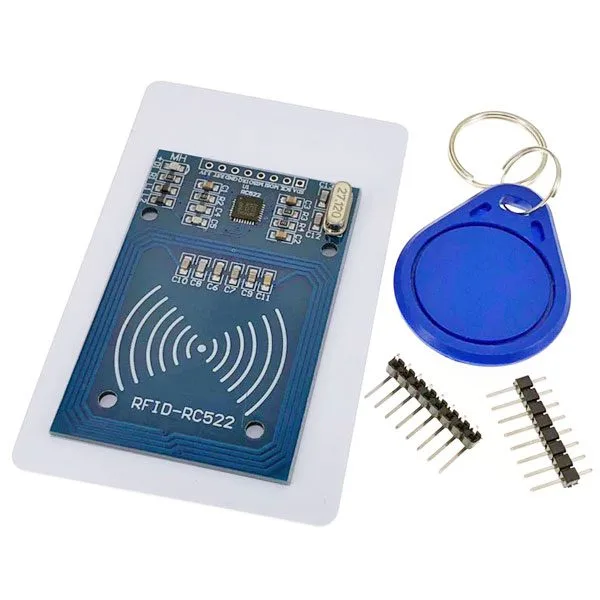

RFID NFC 13.56 MHz Read-Write Module - Image 3

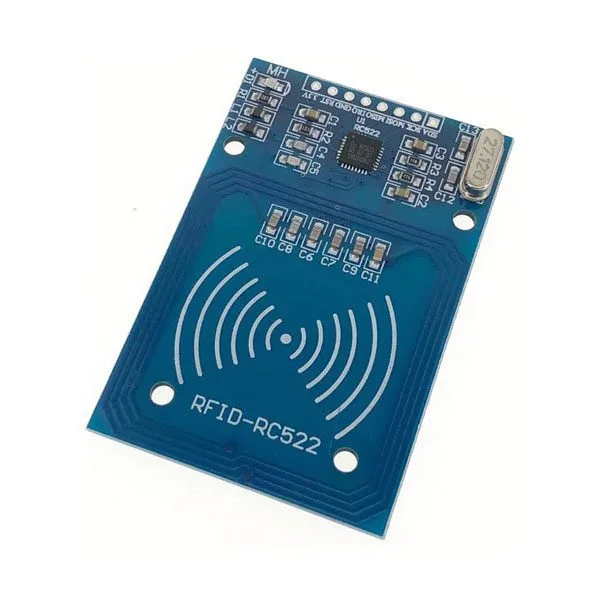

RFID NFC 13.56 MHz Read-Write Module - Image 4

SKU 2846-VMA405NEAN 8219671115858Item type: Assembled

Description

MIFARE-type RFID reader/writer module, compatible with Arduino, Fishino, etc. In the documentation and useful links section you will find examples and libraries for Arduino. The package includes an RFID keyfob, an RFID card, a reader/writer module and two 8-pin solder header strips.

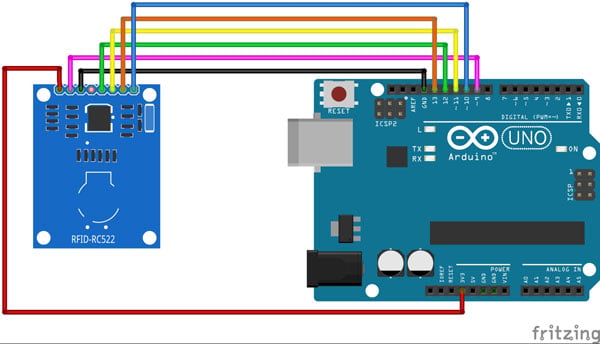

Example with Arduino
Technical specifications
  • Includes: 1 reader/writer module, an RFID card and an RFID keyfob
Documentation and useful links

Technical details

Operating voltage 3.3 VDC (do not power at 5 volts)
Operating current between 13 and 26 mA
Standby current < 80 uA
Peak current < 30 mA
Operating frequency 13.56 MHz
Supported cards Mifare
Interface / protocol SPI
Controller chip MFRC522
Data transmission rate Max. 10 Mbit/s
Dimensions (mm) 60x40x6
Operating temperature -20°C to +80°C
Storage temperature -40°C to +85°C
Relative humidity 5%-95%
