16×16 WS2812B Neopixel LED Panel – Flexible

Combined with Arduino, Fishino, Raspberry or any other microcontroller, this flexible panel with 256 Neopixel LEDs (16x16) and WS2812B chips lets you create animations, text, drawings and more

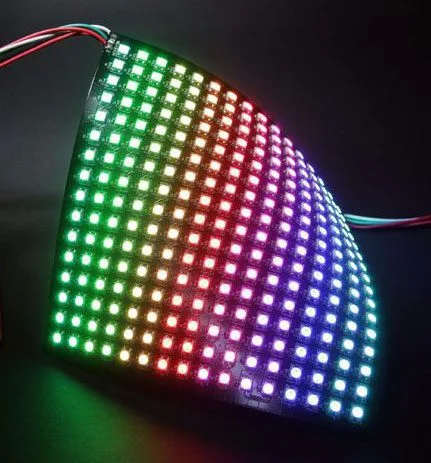

16x16 WS2812B Neopixel LED Panel - Flexible - Image 1
16x16 WS2812B Neopixel LED Panel - Flexible - Image 3

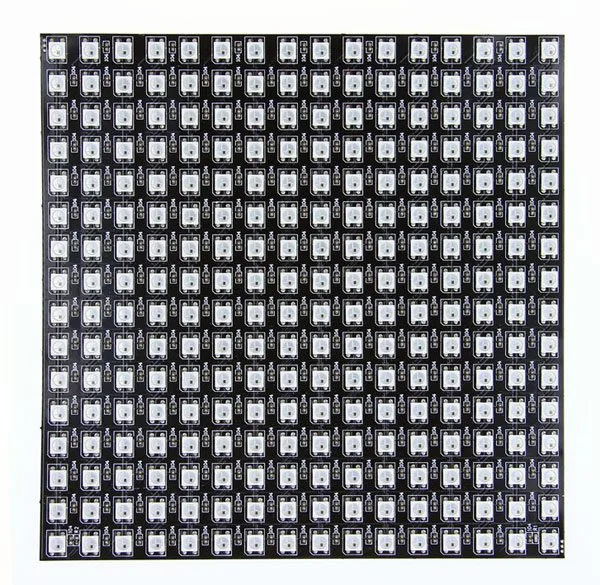

16x16 WS2812B Neopixel LED Panel - Flexible - Image 4

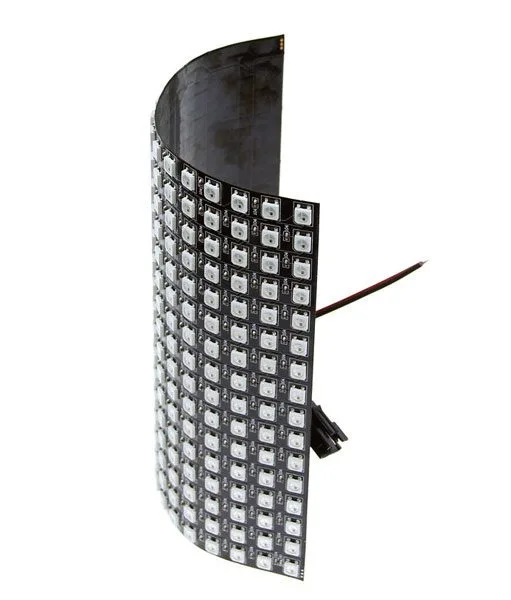

16x16 WS2812B Neopixel LED Panel - Flexible - Image 5

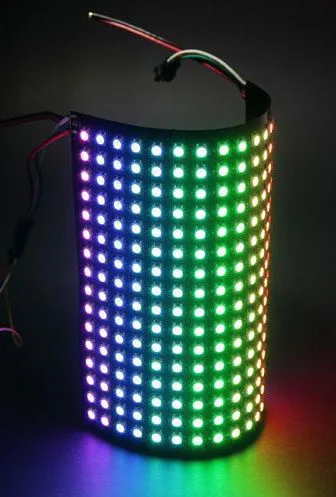

16x16 WS2812B Neopixel LED Panel - Flexible - Image 6

SKU 3085-FLEXLEDMX1616EAN 8219671106771Item type: Assembled

Description

When paired with Arduino, Fishino, Raspberry Pi, or another microcontroller, this flexible panel with 256 Neopixel LEDs (16×16) using the WS2812B chip lets you create animations, text, drawings, and more. The distance between each LED is 10 mm (center to center). It has two connectors, one as input and the other as output, allowing multiple panels to be daisy-chained to form even larger screens. Power: 5 VDC, dimensions (mm): 160x160x1.8.
