Raspberry Pi 3 Model B+ with Wi-Fi and Bluetooth

Raspberry Pi 3 Model B+ with a 64-bit quad-core ARM Cortex A53 CPU clocked at 1.4 GHz; on-board WiFi (IEEE 802.11ac) built around a 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/a controller, with Ethernet that can negotiate connections on a Gigabit ethernet network while running at 300 Mbps; Bluetooth 4.2 LE

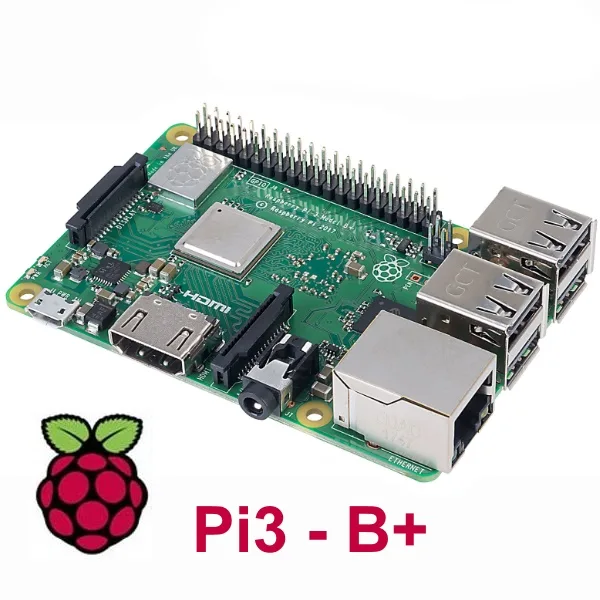

Raspberry Pi 3 Model B+ with Wi-Fi and Bluetooth - Image 1

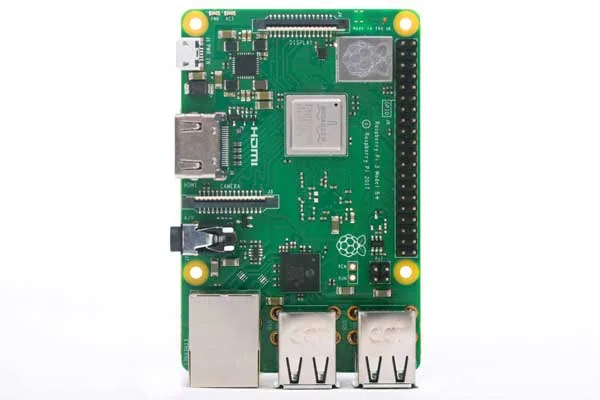

Raspberry Pi 3 Model B+ with Wi-Fi and Bluetooth - Image 3

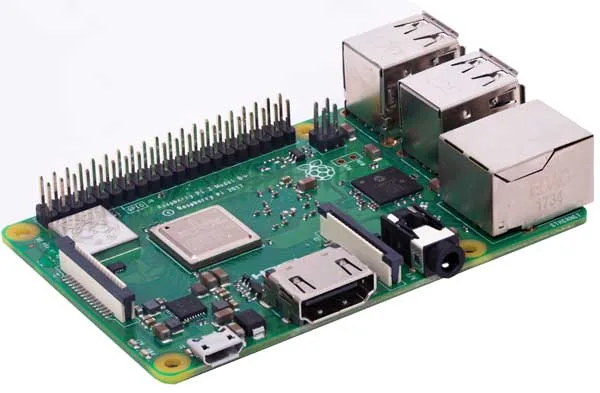

Raspberry Pi 3 Model B+ with Wi-Fi and Bluetooth - Image 4

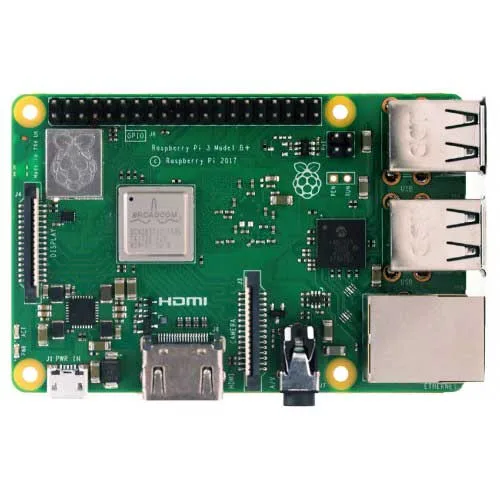

Raspberry Pi 3 Model B+ with Wi-Fi and Bluetooth - Image 5

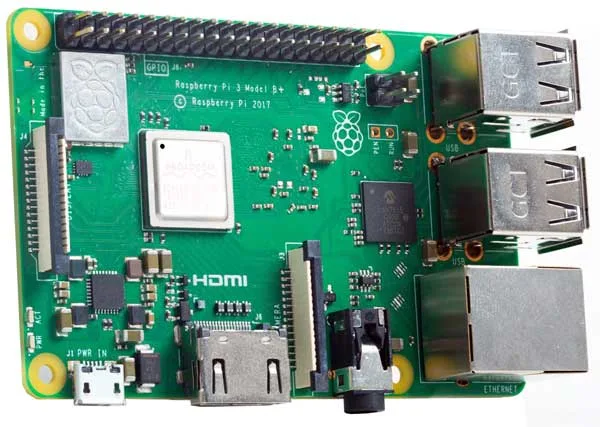

Raspberry Pi 3 Model B+ with Wi-Fi and Bluetooth - Image 6

SKU 7310-RPI3BPLUSEAN 5060214370165Item type: Assembled, Board

Description

The new Raspberry Pi 3 Model B+ has a 64-bit quad-core ARM Cortex A53 CPU clocked at 1.4 GHz; on-board WiFi (IEEE 802.11ac) built around a 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/a controller, with ethernet that can negotiate connections on a Gigabit ethernet network while running at 300 Mbps; Bluetooth 4.2 LE, the most advanced of the modes classed as Bluetooth Smart and already able to support WPAN; support for Power over Ethernet (PoE) through an add-on HAT module (a dedicated shield that supplies the power).

It keeps the same form factor as the Raspberry Pi 3 Model B. The video inputs and outputs keep the same layout and features, as do the GPU section and the amount of RAM, which stays at 1 GB and is shared with it. The multimedia support is unchanged as well: H.264, MPEG-4 decoding (1080p30), H.264 encoding (1080p30) and OpenGL ES 1.1, 2.0 support.
Technical specifications

Video input

15pin MIPI connector, CSI connector (camera interface) for the Raspberry Pi camera or the Raspberry Pi NoIR camera

Outputs

HDMI, composite video (3.5 mm jack), MIPI display interface (DSI) for

LCD panels

Connectivity

Gigabit Ethernet at 300 Mbps, wireless 802.11ac,

Bluetooth 4.2, BLE

Power over Ethernet (PoE) with a HAT

Power consumption

typically 300 mA (1.5 W) idling and 1.34 A (6.7 W) at maximum (with monitor, keyboard, mouse and WiFi in use)
Documentation and useful links

Technical details

SoC Broadcom BCM2837B0
CPU quad core 1.4 GHz 64bit ARM CortexA53
GPU 4 (on a 5-port USB hub)
Memory 1 GB (shared with the CPU)
USB 4 ports, version 2.0, on a 5-port hub
Audio inputs slot MicroSDHC, USB
Audio outputs analogue (3.5 mm jack) and digital over HDMI and I²S
Onboard storage slot microSDHC, USB (Boot Mode)
I/O Header with 40 GPIO
Power supply 5V from microUSB, GPIO or from a PoE shield
