Prototyping Board for Raspberry Pi – Kit
Prototyping board made specifically to fit the Raspberry Pi board (model B rev.2), letting you test your own applications without having to make a dedicated printed circuit board
SKU 7100-FT1073KEAN 8219671060257Item type: Kit, Shields & add-onsRaspberry Pi
Description

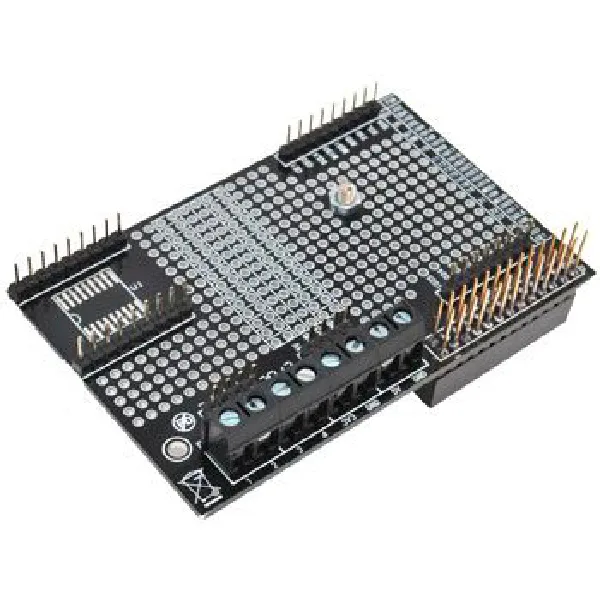

| Prototyping board made specifically to fit the Raspberry Pi board (model B rev.2), letting you test your own applications without having to make a dedicated printed circuit board. The board carries a 26 pin connector (M/F) that matches the GPIO connector on the Raspberry Pi exactly and allows a further board (an LCD board, for example) to be stacked on top. Four of the eight screw terminals are free for the user, while the other 4 are wired straight to the supply lines (3V3, 5V) and ground (GND) of the Raspberry board. All the remaining GPIO lines of the 26 pin connector are wired to as many male pin strips with 2.54 mm pitch. The board (which measures 86x56x26 mm) also takes chips in SOJ18 and SOL18 packages (their pins run to 2 male pin strips of 9 poles) plus a range of pads the user can wire up as each application requires. The pack contains: the PCB, part number 7200-S1073, 1 screw 3MA x 8 mm, 1 male/female hex spacer 18 mm, 1 metal nut 3MA, 1 female connector 2×13 pin, 14.5 mm long, 1 male strip connector 40 poles with 2.54 mm pitch, 1 male strip connector 4 poles with 2.54 mm pitch, 4 screw terminal blocks 2 poles with 5 mm pitch. |
  |
