Raspberry Pi 3 Model B with Wi-Fi and Bluetooth

The Raspberry Pi 3 model B is the third generation of Raspberry Pi

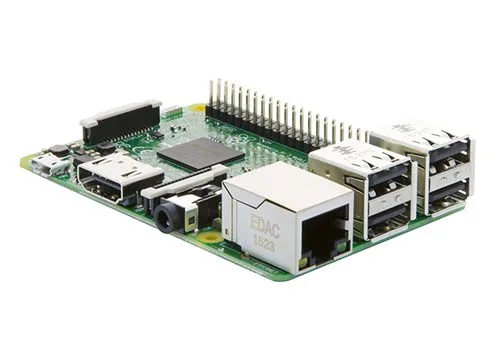

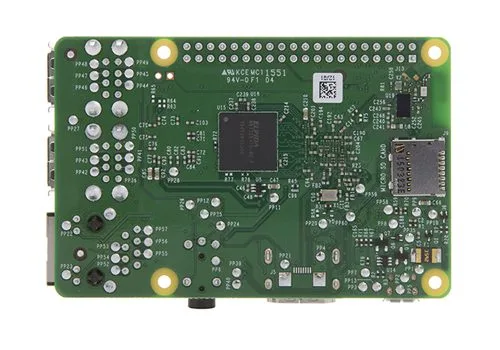

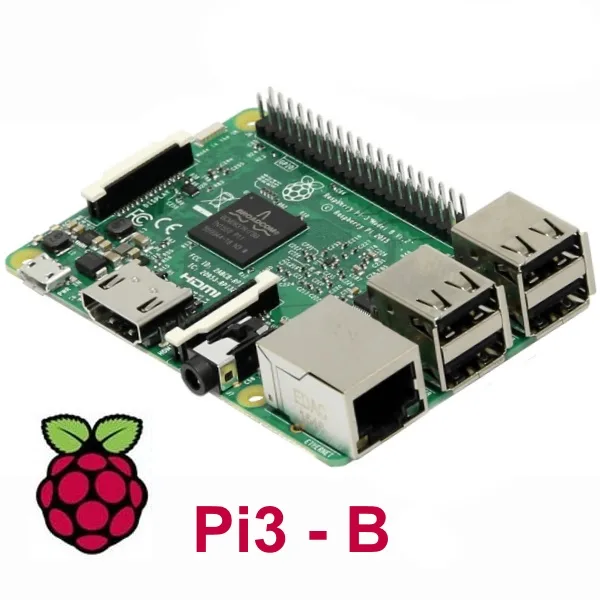

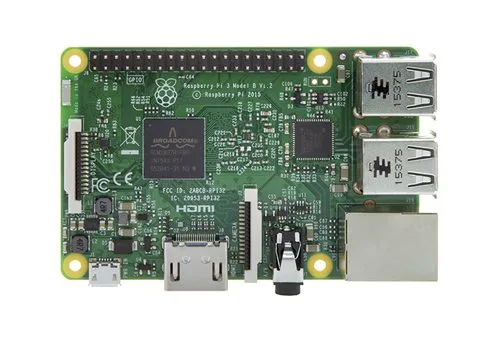

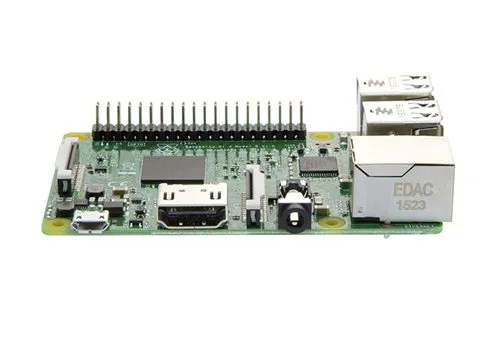

Raspberry Pi 3 Model B with Wi-Fi and Bluetooth - Image 1
Raspberry Pi 3 Model B with Wi-Fi and Bluetooth - Image 3
Raspberry Pi 3 Model B with Wi-Fi and Bluetooth - Image 4
Raspberry Pi 3 Model B with Wi-Fi and Bluetooth - Image 5
Raspberry Pi 3 Model B with Wi-Fi and Bluetooth - Image 6

SKU 7310-8968660RSEAN 8219671076500Item type: Assembled, Board

Description

The Raspberry Pi 3 model B is the third generation of Raspberry Pi. Not only is it good for learning to program, to develop and to play, it is now also perfect for IoT projects. It has the new 1.2 GHz quad-core Cortex-A53 Broadcom BCM2837 processor, 1 GB of SDRAM, a 1 Gpixel GPU, 802.11 b/g/n Wireless LAN connectivity, Bluetooth 4.1, 4 USB ports, 40 GPIO, a Full HDMI port, an Ethernet port, composite video output, audio output, a 15-way MPI CSI-2 connector for the high-definition Raspberry Pi camera, a 15-way display serial interface connector and a micro SD Card slot. It supports Raspbian, Windows 10 IoT, OpenELEC, OSMC, Pidora, Arch Linux, RISCOS and much more!
Technical specifications
  • Quad-core Cortex-A53 Broadcom BCM2837 1.2 GHz ARM processor with dual-core VideoCore 4 GPU
  • The GPU supports Open GL ES 2.0, OpenVG hardware acceleration and H.264 high-profile 1080p30 decoding
  • The GPU is capable of 1 Gpixel/s, 1.5 Gtexel/s or 24 GFLOPs with texture filtering and DMA infrastructure
  • 1 GB LPDDR2 SDRAM
  • On-board BCM43143 Wi-Fi module
  • On-board Bluetooth (BLE) module
  • 1080p HD video output
  • 10/100 BaseT RJ45 Ethernet socket
  • HDMI 1.3 and 1.4 video/audio socket
  • 3.5 mm 4-pole composite audio/video output jack socket
  • 4 x USB 2.0 sockets with output up to 1.2 A
  • 15-way MPI CSI-2 connector for the high-definition Raspberry Pi camera
  • 15-way display serial interface connector
  • MicroSD card socket
  • Boot from MicroSD card
  • 40-pin connector for GPIO and serial buses
  • Supports Raspbian, Windows 10 IoT, OpenELEC, OSMC, Pidora, Arch Linux, RISCOS and much more!
Documentation and useful links

Technical details

Power supply 5 Vdc at 2.5 A through the micro USB socket
Dimensions (mm) 86x56x17
