True color RGB HAT for Raspberry Pi

HAT with 32 WS2812B LEDs arranged in four rows of eight, on the 40-pin GPIO connector, with Python examples and web control.

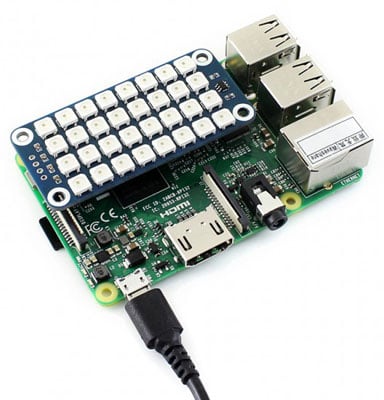

True color RGB HAT for Raspberry Pi - Image 1

SKU 2850-RGBLEDHATEAN 8219671083904Item type: Assembled, Shields & add-ons

Description

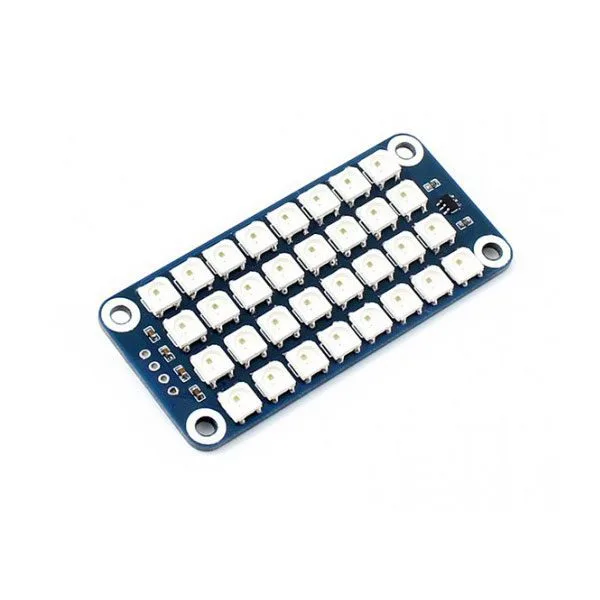

Fitted with 32 WS2812B type RGB LEDs. Connects to the Raspberry Pi via the 40-pin GPIO connector. Supplied complete with source code for developers. Examples in Python and Web control are available. Warning! Raspberry Pi not included.
Specifications
  • Compatible with all types of Raspberry Pi (can be connected directly)
  • Onboard 4 × 8 RGB LED (WS2812B)
  • Pins configurable via jumper (0Ω resistor)
  • Supplied complete with source code for development and manuals (examples in Python and Web control)

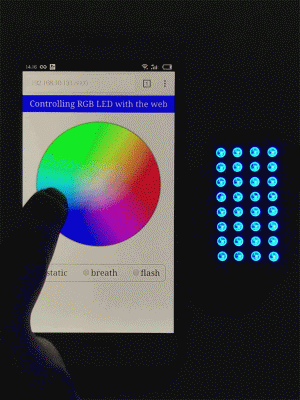

Demo
Documentation and useful links

Technical details

Working voltage 5V
Brightness adjustable, 256 levels
Color depth 24-bit true color (8-bit R/G/B, total 256x256x256=16777216 colors)
Data rate 800Kbps(typ)
Dimensions 65mm × 30.2mm
Mounting hole diameter 3.0mm
