NEXTION NX8048T070 Display – 7 inch

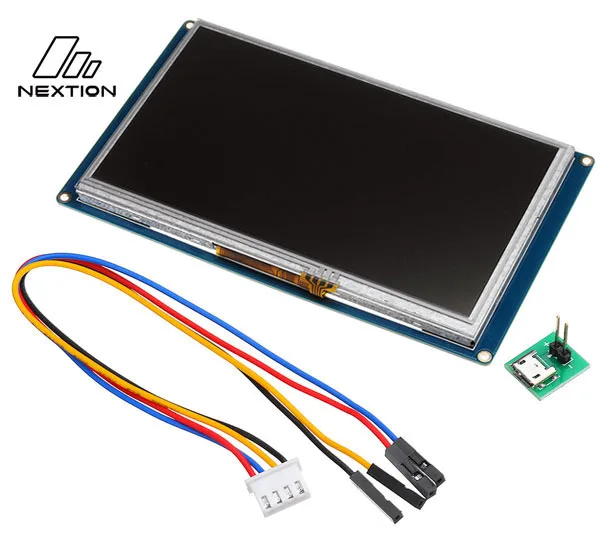

NEXTION NX8048T070 Display - 7 inch - Image 1
NEXTION NX8048T070 Display - 7 inch - Image 3

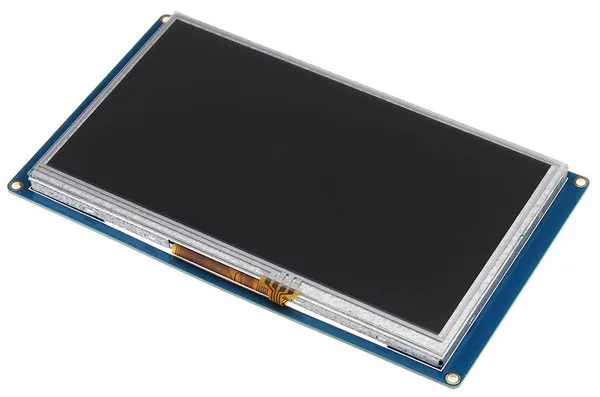

NEXTION NX8048T070 Display - 7 inch - Image 4
NEXTION NX8048T070 Display - 7 inch - Image 5

SKU 8300-NX8048T070EAN 8219671107075Item type: Assembled

Description

The NX8048T070 is a display in the NEXTION family, set apart from ordinary displays by a microcontroller, a flash memory, a slot for an SD card holding the firmware of your project, a 4 pin TTL serial interface and free software (Nextion Editor) written specifically to design the graphics (buttons, progress bars, images, text and so on). It has 16 MB of flash memory, a 7” resistive touch screen, 800x480 pixel resolution and 65,536 colours.
The NX8048T070 is a display in the NEXTION family, set apart from ordinary displays by a microcontroller, a flash memory, a slot for an SD card holding the firmware of your project, a 4 pin TTL serial interface and free software (Nextion Editor) written specifically to design the graphics (buttons, progress bars, images, text and so on). It has 16 MB of flash memory, a 7” resistive touch screen, 800×480 pixel resolution and 65,536 colours.

Ideal for building process monitoring and control applications and for showing data, photos and video, it can be used with Arduino, Raspberry Pi and other microcontrollers.

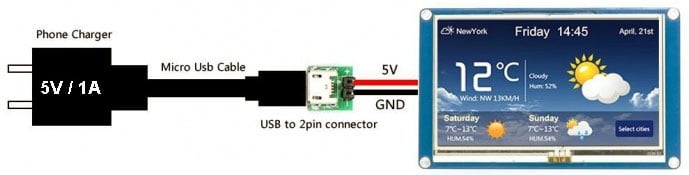

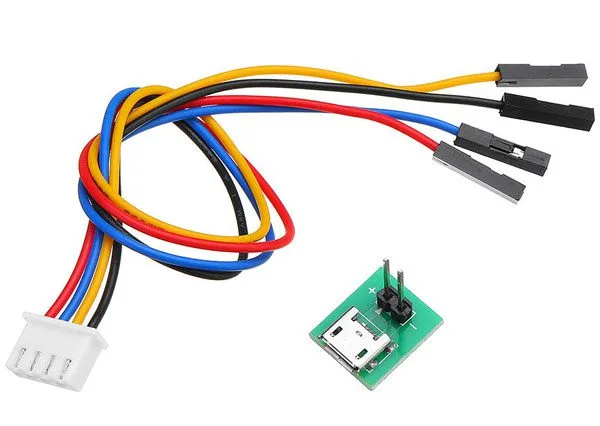

The pack contains the touch screen display module, the 4 wire cable with connector and the micro USB power adapter.
Nextion displays
NEXTION is a Human Machine Interface (HMI) solution that combines a TFT touch display with a microcontroller and a memory. With the NEXTION Editor software you can quickly develop the HMI GUI by dragging in components (graphics, text, buttons, sliders and so on) and using text based ASCII instructions to code how the components interact on the display. With just 2 wires (RX, TX), the NEXTION display connects quickly to the microcontroller over 5 V TTL serial.

NEXTION offers a cost effective Human Machine Interface solution.
NEXTION guarantees availability of all the products in the series for a minimum of 5 years (from 2016), with CE and RoHS declarations of conformity.
Technical specifications
  • TFT display with resistive touch screen
  • Resolution 800×480 pixel
  • Colours 65,536
  • 16 MB Flash memory for user applications and data
  • SD card slot for firmware updates
  • Compatible with Arduino, Fishino, Raspberry Pi
  • 4 pin TTL serial interface
  • Adjustable brightness
  • Power supply: 5 VDC 510 mA
Documentation and useful links

Technical details

Power supply 5 VDC
Display size (mm) 181x108x16
Viewing area (mm) 154.08 (L) x 85.92 (W)
Weight 267 g
